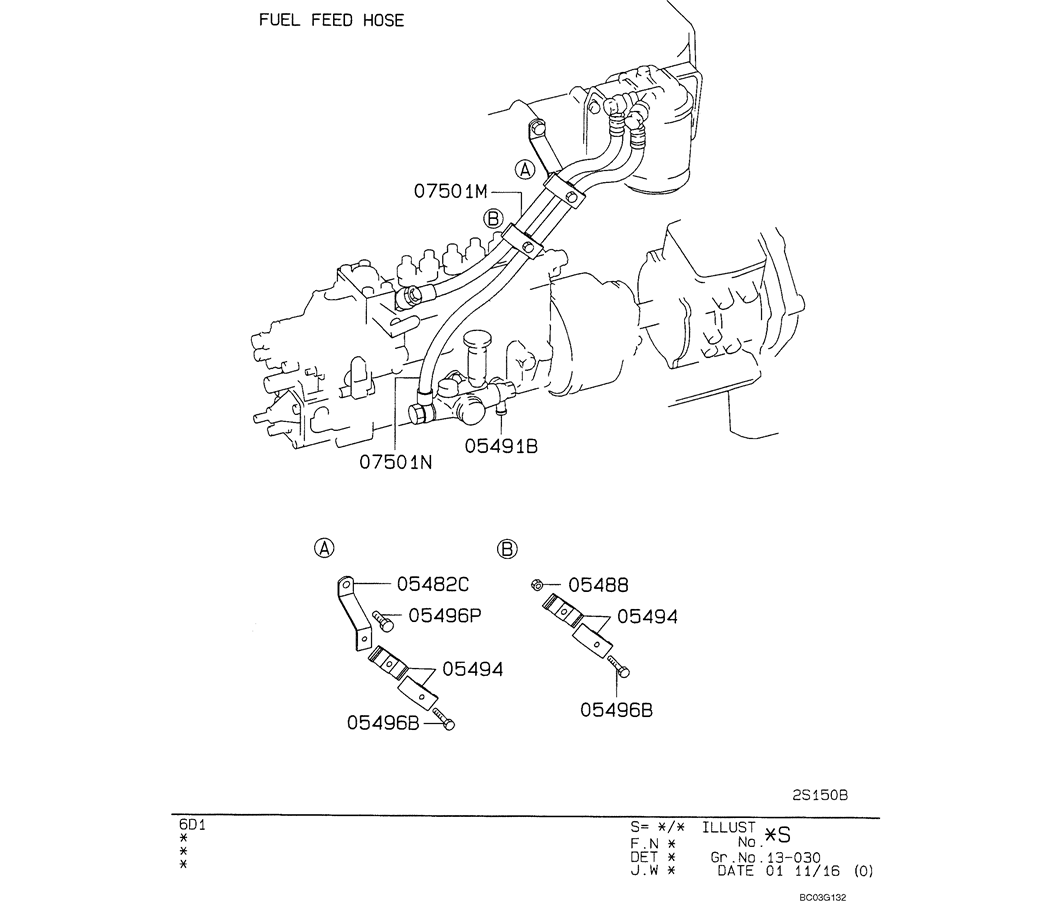

08-019(02) FUEL FILTER AND HOSE
08-019(02) FUEL FILTER AND HOSE-SK330LC-6E SK330-6E SK350LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals
07501N 1 VAME910356 HOSE HOSE, INJECTION PUMP FUEL FEED, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: L=560
07501M 1 VAME910144 HOSE HOSE, INJECTION PUMP FUEL FEED, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: L=440
05496P 1 VAMF140223 BOLT BOLT, FUEL LINE, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: FLANGE, 8X16
05496B 2 VAMF140215 BOLT BOLT, FUEL LINE, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: FLANGE, 6X40
05494 4 VAMH020328 CLIP CLAMP, FUEL LINE, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: D=16.5X2
05491B 1 VAMH037116 FLEXIBLE JOINT JOINT, FUEL LINE, FROM-UP TO: 0210.1-, MODEL TYPE: ALL
05488 1 VAMF434103 NUT NUT, FUEL LINE, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: FLANGE, 6
05482C 1 VAMH023862 STAY STAY, FUEL LINE, FROM-UP TO: 0210.1-, MODEL TYPE: ALL
05399 2 VAMS146018 BOLT BOLT, FUEL FILTER, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: FLANGE, 10X60
05398 2 VAMH037087 BOLT EYEBOLT, FUEL FILTER, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: 14X26
05394C 4 VAMH035069 GASKET GASKET, FUEL FILTER, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: 14
05392 1 VAME072905 COCK PLUG, FUEL FILTER, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: 8
05314 1 VAME072907 HOUSING HEAD, FUEL FILTER, FROM-UP TO: 0210.1-, MODEL TYPE: ALL
05300A 1 VAME072906 FUEL FILTER FUEL FILTER ASSY, FROM-UP TO: 0210.1-, MODEL TYPE: ALL
05300 1 VAME056670 ELEMENT FUEL FILTER, FROM-UP TO: 0210.1-, MODEL TYPE: ALL
07501N 1 VAME910356 HOSE HOSE, INJECTION PUMP FUEL FEED, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: L=560
07501M 1 VAME910144 HOSE HOSE, INJECTION PUMP FUEL FEED, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: L=440
05496P 1 VAMF140223 BOLT BOLT, FUEL LINE, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: FLANGE, 8X16
05496B 2 VAMF140215 BOLT BOLT, FUEL LINE, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: FLANGE, 6X40
05494 4 VAMH020328 CLIP CLAMP, FUEL LINE, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: D=16.5X2
05491B 1 VAMH037116 FLEXIBLE JOINT JOINT, FUEL LINE, FROM-UP TO: 0210.1-, MODEL TYPE: ALL
05488 1 VAMF434103 NUT NUT, FUEL LINE, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: FLANGE, 6
05482C 1 VAMH023862 STAY STAY, FUEL LINE, FROM-UP TO: 0210.1-, MODEL TYPE: ALL
05399 2 VAMS146018 BOLT BOLT, FUEL FILTER, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: FLANGE, 10X60
05398 2 VAMH037087 BOLT EYEBOLT, FUEL FILTER, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: 14X26
05392 1 VAME072905 COCK PLUG, FUEL FILTER, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: 8
05314 1 VAME072907 HOUSING HEAD, FUEL FILTER, FROM-UP TO: 0210.1-, MODEL TYPE: ALL
05300A 1 VAME072906 FUEL FILTER FUEL FILTER ASSY, FROM-UP TO: 0210.1-, MODEL TYPE: ALL
05300 1 VAME056670 ELEMENT FUEL FILTER, FROM-UP TO: 0210.1-, MODEL TYPE: ALL
05394C 4 VAMH035069 GASKET GASKET, FUEL FILTER, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: 14
