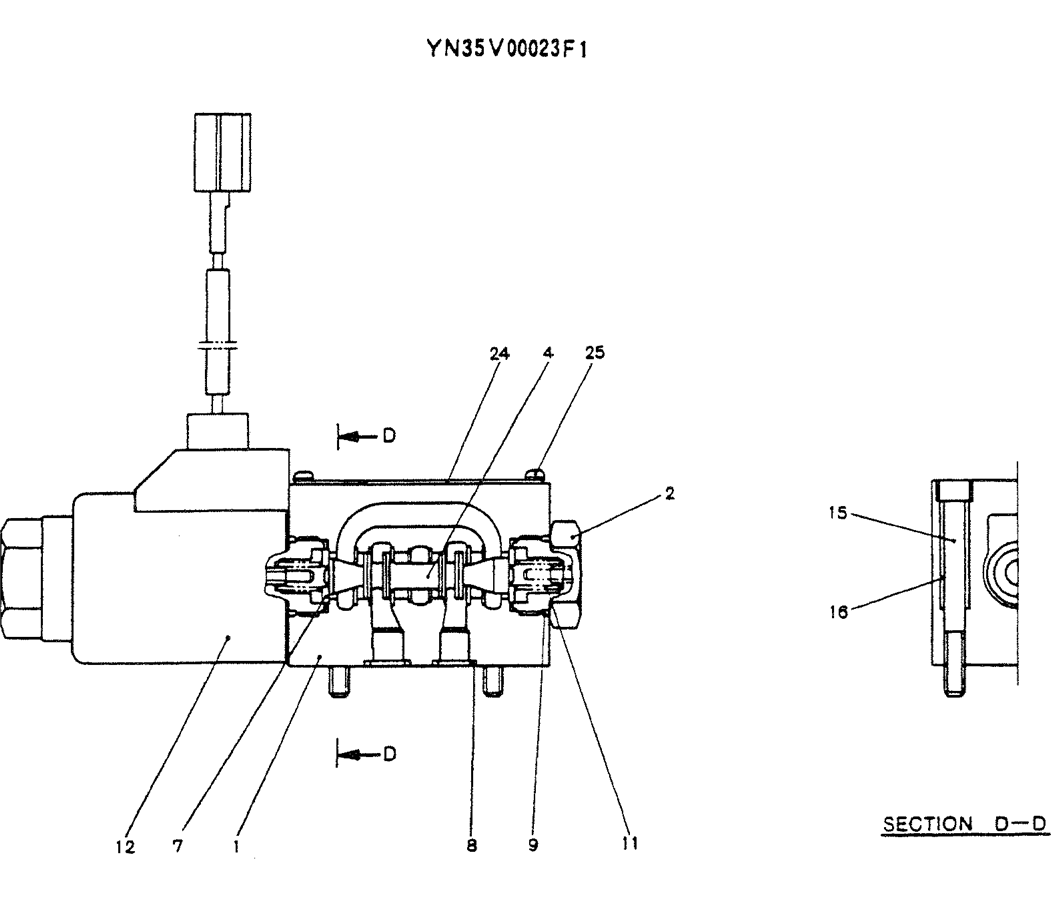

07-050VALVE ASSY, SOLENOID, P/N YN35V00023F1

07-050VALVE ASSY, SOLENOID, P/N YN35V00023F1-Kobelco SK200-3 SK200LC-5 SK200 Excavator Parts Number Electronic Catalog EPC Manuals

07-050VALVE ASSY, SOLENOID, P/N YN35V00023F1-Kobelco SK200-3 SK200LC-5 SK200 Excavator Parts Number Electronic Catalog EPC Manuals
07-050VALVE ASSY, SOLENOID, P/N YN35V00023F1-Kobelco SK200-3 SK200LC-5 SK200 Excavator Parts Number Electronic Catalog EPC Manuals

25 2 NSS NOT SERVICED SEPARATELY SCREW
24 1 NSS NOT SERVICED SEPARATELY NAME PLATE
16 4 NSS NOT SERVICED SEPARATELY PIN, SPRING
15 4 2436U299S14 SCREW CAPSCREW
12 1 2436U2946S12 SOLENOID
11 2 2436U2946S11 SPRING
9 2 2436U2946S9 O-RING
8 4 2436U2946S8 RING
7 2 2436U2946S7 SEAT,SPRING
4 1 NSS NOT SERVICED SEPARATELY SPOOL
1 1 NSS NOT SERVICED SEPARATELY CASE
YN35V00023F1 SOLENOID VALVE ASSY
2 1 2436U2946S2 PLUG
