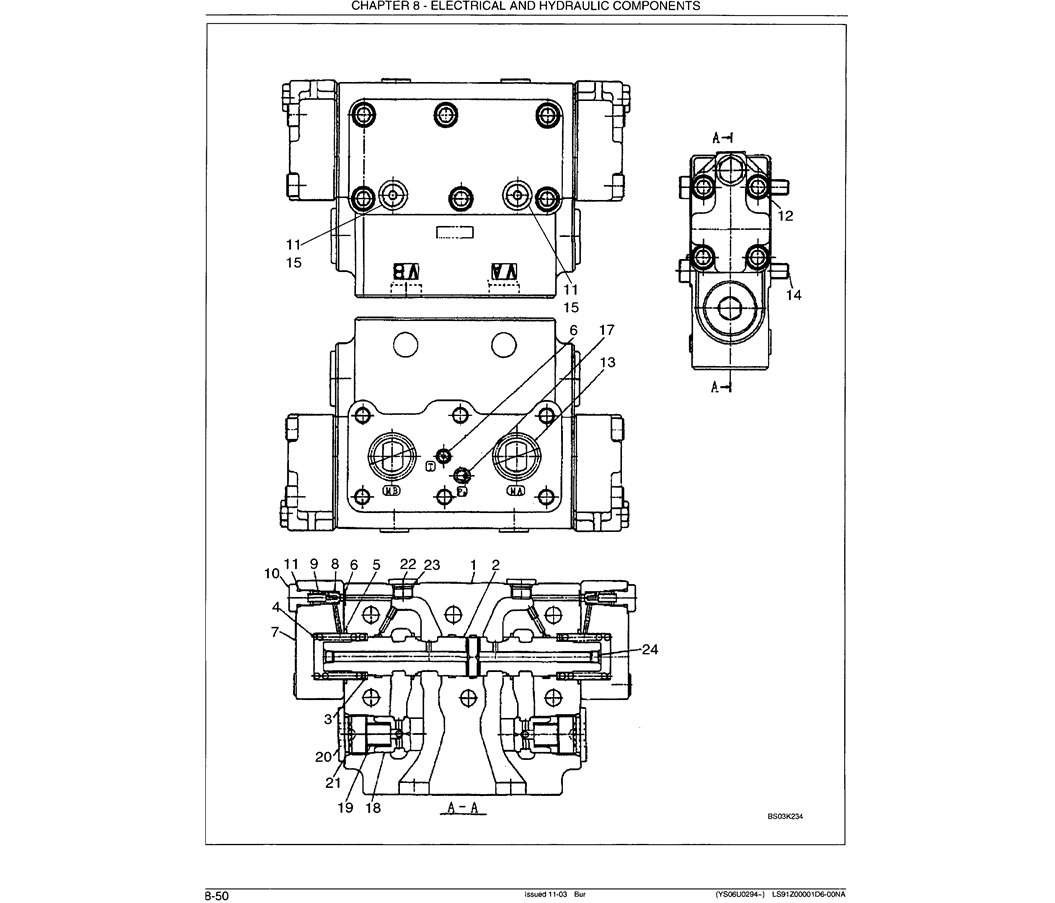

07-021 VALVE ASSEMBLY, BRAKE P/N LS23V00001F1
07-021 VALVE ASSEMBLY, BRAKE P/N LS23V00001F1-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals
24 2 YR30V00001S124 PLUG
23 2 ZD12P01400 O-RING ID 13.80 ± 0.19 x OD 18mm
22 2 YW01V00002S027 PLUG
21 2 ZD12P02900 O-RING ID 28.70 ± 0.29 x OD 35mm
20 2 2436U3041S20 PLUG
19 2 2436U3041S19 SPRING
18 2 2436U3041S18 VALVE, CHECK
17 1 ZD12P01000 O-RING ID 09.80 ± 0.17 x OD 13mm
15 2 2436U1317S13 PLUG
14 6 ZS23C12080 SCREW M12x1.75x80mm
13 2 ZD12G03500 O-RING ID 34.40 ± 0.33 x OD 40mm
12 8 ZS23C12045 SCREW M12x1.75x45mm
11 2 ZD12P01100 O-RING ID 10.80 ± 0.18 x OD 15mm
10 2 2436U1139S10 PLUG
9 2 2483U223S4 SPRING
8 2 2436U1384S8 VALVE ORIFICE
7 2 YN23V00001S007 COVER
6 3 ZD12P00900 O-RING ID 08.80 ± 0.17 x OD 12mm
5 2 ZD12G04000 O-RING ID 39.40 ± 0.37 x OD 45mm
4 2 2436U1139S4 SPRING
2 1 NSS NOT SERVICED SEPARATELY SPOOL ASSY
1 1 NSS NOT SERVICED SEPARATELY BODY
1 LS23V00001F1 BRAKE VALVE ASSY
3 2 2436U1139S3 SPRING SEAT
