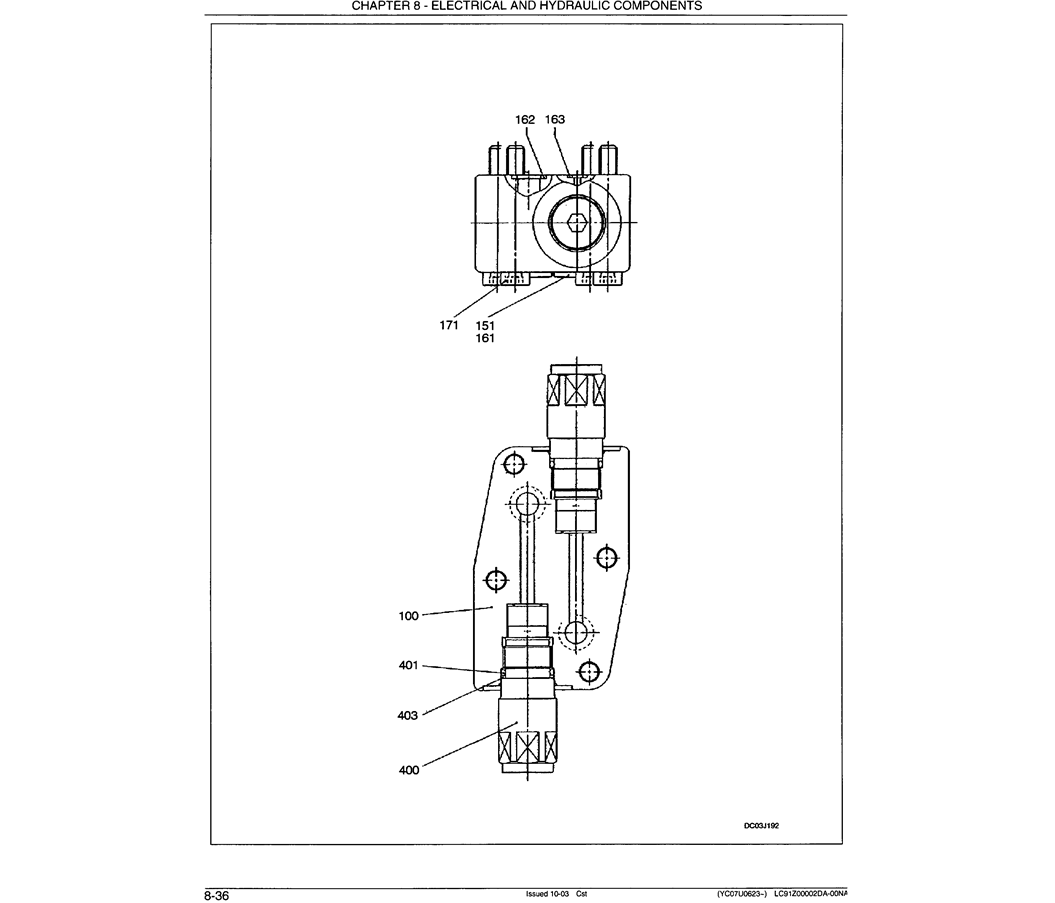

07-015 SWING SHOCKLESS VALVE
07-015 SWING SHOCKLESS VALVE-SK330LC-6E SK330-6E SK350LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals
403 2 ZD85P02000 RING Back-Up — ID 20 x OD 24 x Th 1.25mm
401 2 ZD12P02000 O-RING ID 19.80 ± 0.22 x OD 24mm
400 4 YN20V00004S400 VALVE ASSEMBLY
171 2 ZS23C08055 SCREW M08x1.25x55mm
163 2 ZD12P00600 O-RING ID 05.80 ± 0.15 x OD 09mm
162 2 ZD12P01200 O-RING ID 11.80 ± 0.19 x OD 16mm
161 2 ZD12P01100 O-RING ID 10.80 ± 0.18 x OD 15mm
151 2 YW30V00001S157 PLUG
100 1 LQ15V00001S100 CASE
1 YN20V00004F1 VALVE ASSEMBLY, for Hydraulic Motor, Swing LC15V00003F2
403 2 ZD85P02000 RING Back-Up — ID 20 x OD 24 x Th 1.25mm
401 2 ZD12P02000 O-RING ID 19.80 ± 0.22 x OD 24mm
171 2 ZS23C08055 SCREW M08x1.25x55mm
163 2 ZD12P00600 O-RING ID 05.80 ± 0.15 x OD 09mm
162 2 ZD12P01200 O-RING ID 11.80 ± 0.19 x OD 16mm
161 2 ZD12P01100 O-RING ID 10.80 ± 0.18 x OD 15mm
151 2 YW30V00001S157 PLUG
100 1 LQ15V00001S100 CASE
1 YN20V00004F1 VALVE ASSEMBLY for Hydraulic Motor, Swing LC15V00003F1
400 4 YN20V00004S400 VALVE ASSEMBLY
