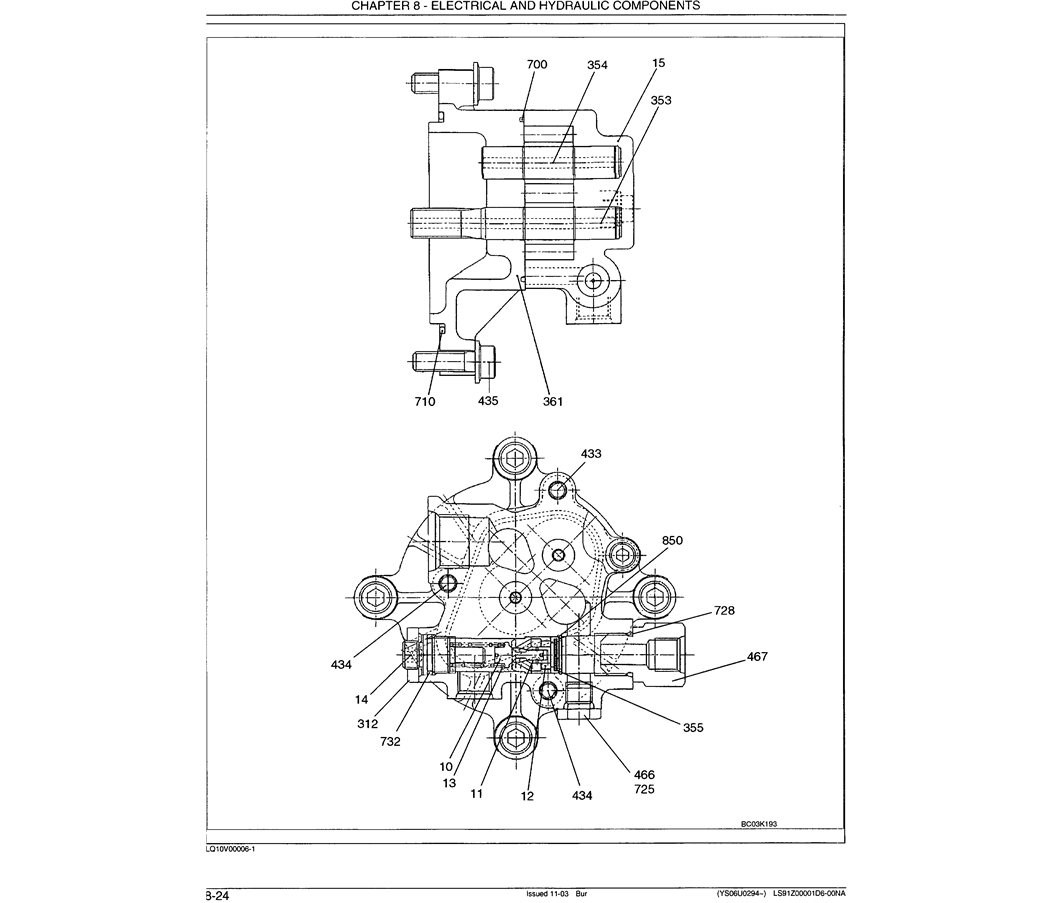

07-011 PUMP ASSEMBLY, GEAR P/N LS10V00003F2

07-011 PUMP ASSEMBLY, GEAR P/N LS10V00003F2-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals

07-011 PUMP ASSEMBLY, GEAR P/N LS10V00003F2-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals
07-011 PUMP ASSEMBLY, GEAR P/N LS10V00003F2-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals

850 1 ZR26X01800 RING Retaining — ID 18 x OD 19.5 x Th 1.0mm
732 1 ZD12P01600 O-RING ID 15.80 ± 0.20 x OD 20mm
728 1 ZD12P01800 O-RING ID 17.80 ± 0.21 x OD 22mm
725 1 ZD12P01100 O-RING ID 10.80 ± 0.18 x OD 15mm
710 1 ZD12G10500 O-RING ID 14.80 ± 0.20 x OD 19mm
700 1 YN10V00006S700 RING
467 1 YN10V00006S467 ADAPTER 1/2″ x 3/8″ PF
466 1 2441U667S466 PLUG 1/4″ PF
435 4 LS10V00003S435 SCREW
434 2 LS10V00003S434 SCREW
433 2 LS10V00003S433 SCREW
361 1 NSS NOT SERVICED SEPARATELY CASE
355 1 YN10V00006S355 FILTER
354 1 NSS NOT SERVICED SEPARATELY GEAR, DRIVE
353 1 NSS NOT SERVICED SEPARATELY GEAR, DRIVE
351 1 NSS NOT SERVICED SEPARATELY CASE
312 1 YN10V00006S312 LOCK NUT M14x1.50mm
15 1 NSS NOT SERVICED SEPARATELY CASE
14 1 YN10V00014S014 SCREW
12 1 YN10V00014S012 RING
11 1 NSS NOT SERVICED SEPARATELY SEAT
10 1 NSS NOT SERVICED SEPARATELY POPPET
1 LS10V00003F2 PUMP PUMP ASSY, GEAR
13 1 YN10V00014S013 SPRING
