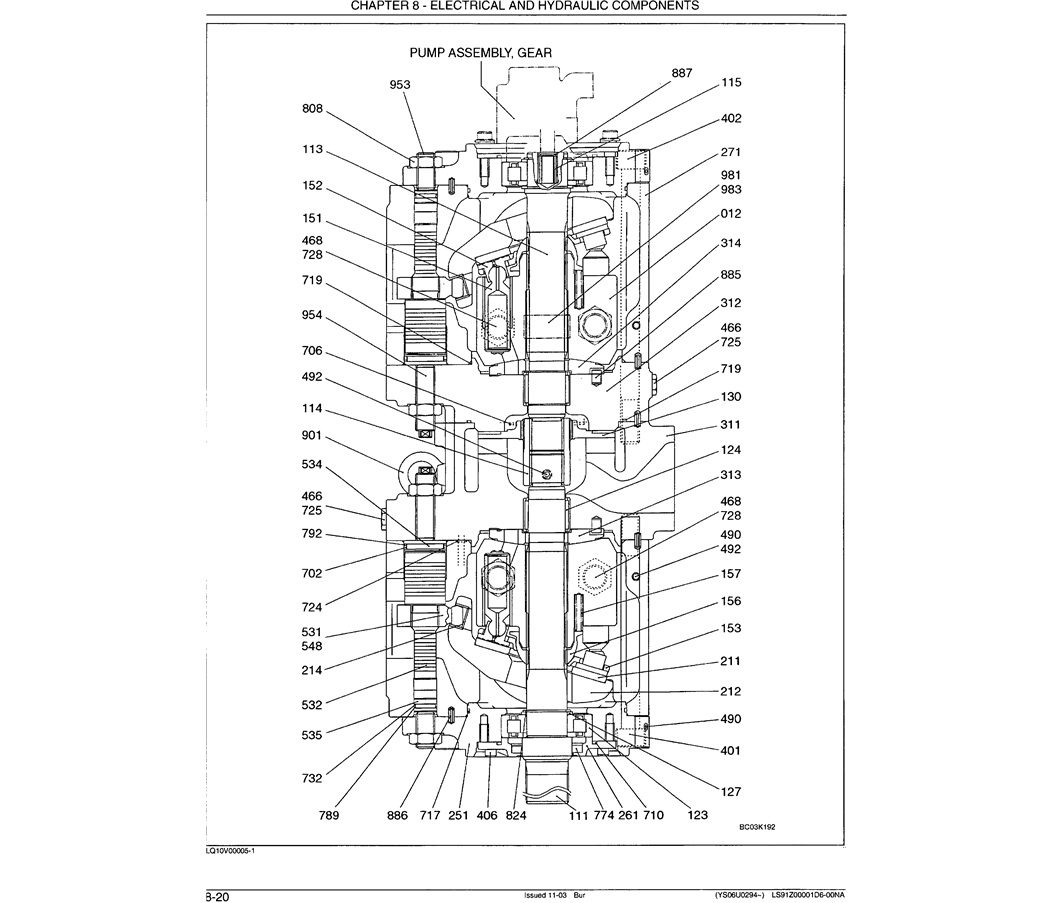

07-010 PUMP ASSEMBLY, HYDRAULIC P/N LS10V00002F1

07-010 PUMP ASSEMBLY, HYDRAULIC P/N LS10V00002F1-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals

07-010 PUMP ASSEMBLY, HYDRAULIC P/N LS10V00002F1-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals
07-010 PUMP ASSEMBLY, HYDRAULIC P/N LS10V00002F1-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals

1 2437U214S30 PLATE Includes Ref 531, 548
1 2437U214S30 PLATE Includes Ref 212, 214
1 2437U219S02 CYLINDER Includes Ref 012, 314
1 2437U219S01 CYLINDER Includes Ref 012, 313
1 2437U470S11 PISTON Includes Ref 151, 152
983 2 2437U407S983 RIVET PIN
981 1 2437U407S981 LABEL NAME PLATE
954 2 2437U534S954 SETSCREW
953 2 2437U219S953 SCREW SET
901 2 2441U413S902 BOLT EYE
887 1 ZR26X01900 SNAP RING RETAINING
886 5 ZP26D06014 PIN Roll — OD 06 x 14mm Long
885 2 2441U474S888 PIN
824 2 ZR16X04500 RING Retaining — ID 45 x OD 58 x Th 1.8mm
808 4 ZN17C20012 NUT
792 2 2437U471S792 BACK-UP RING
789 2 2437U471S789 BACK-UP RING
774 1 2437U214S774 GASKET SEAL, OIL
732 2 2437U214S732 GASKET
728 4 ZD12P02400 O-RING ID 23.70 ± 0.24 x OD 30mm
725 10 ZD12P01100 O-RING ID 10.80 ± 0.18 x OD 15mm
724 15 ZD12P00800 O-RING ID 07.80 ± 0.16 x OD 11mm
719 3 2437U219S719 O-RING
717 2 2441U741S472 O-RING
1 LS10V00002F1 PUMP ASSY-HYDRAULIC
710 1 ZD12G10500 O-RING ID 14.80 ± 0.20 x OD 19mm
706 1 ZD12G06000 O-RING ID 59.40 ± 0.53 x OD 65mm
702 2 2437U214S702 GASKET O-RING
548 2 NSS NOT SERVICED SEPARATELY PIN, FEEDBACK
535 2 2437U214S535 STOP
534 2 2437U214S534 STOP
532 2 2437U214S532 PISTON PISTON
531 2 NSS NOT SERVICED SEPARATELY PIN
492 2 2436U1165S152 PLUG
490 32 2441U722S490 PLUG 1/16″ NPTF
468 4 2441U436S469 PLUG
466 4 2441U667S466 PLUG 1/4″ PF
406 4 ZS23C08020 SCREW M08x1.25x20mm
402 4 2437U534S402 SCREW CAP
401 4 2437U214S401 SCREW
314 1 NSS NOT SERVICED SEPARATELY PLATE, VALVE
313 1 NSS NOT SERVICED SEPARATELY PLATE, VALVE
312 1 2437U534S312 BLOCK, VALVE
311 1 2437U534S311 BLOCK, VALVE
271 2 2437U534S271 CASE
261 1 2437U214S261 CUP COVER SEAL
251 2 2437U219S251 COVER SUPPORT
214 2 NSS NOT SERVICED SEPARATELY BUSHING
212 2 NSS NOT SERVICED SEPARATELY PLATE
211 2 2441U564S124 PLATE SHOE
157 18 2437U219S157 SPRING
156 2 LS10V00002S156 BUSHING
153 2 2437U214S153 PLATE
152 18 NSS NOT SERVICED SEPARATELY SHOE
151 18 NSS NOT SERVICED SEPARATELY PISTON
130 1 2437U534S130 BRAKE BOOSTER PLATE
127 3 2437U534S127 SPACER
124 2 2437U534S124 NEEDLE BEARING BEARING, NEEDLE
123 2 2437U534S123 ROLLER BEARING
115 1 LS10V00002S115 COUPLING JOINT
114 1 2437U534S114 COUPLING JOINT
113 1 LS10V00002S113 SHAFT Rear
012 2 NSS NOT SERVICED SEPARATELY BLOCK, CYLINDER
1 LS10V00002F1 PUMP ASSY – Hydraulic
111 1 2437U534S111 SHAFT Front
