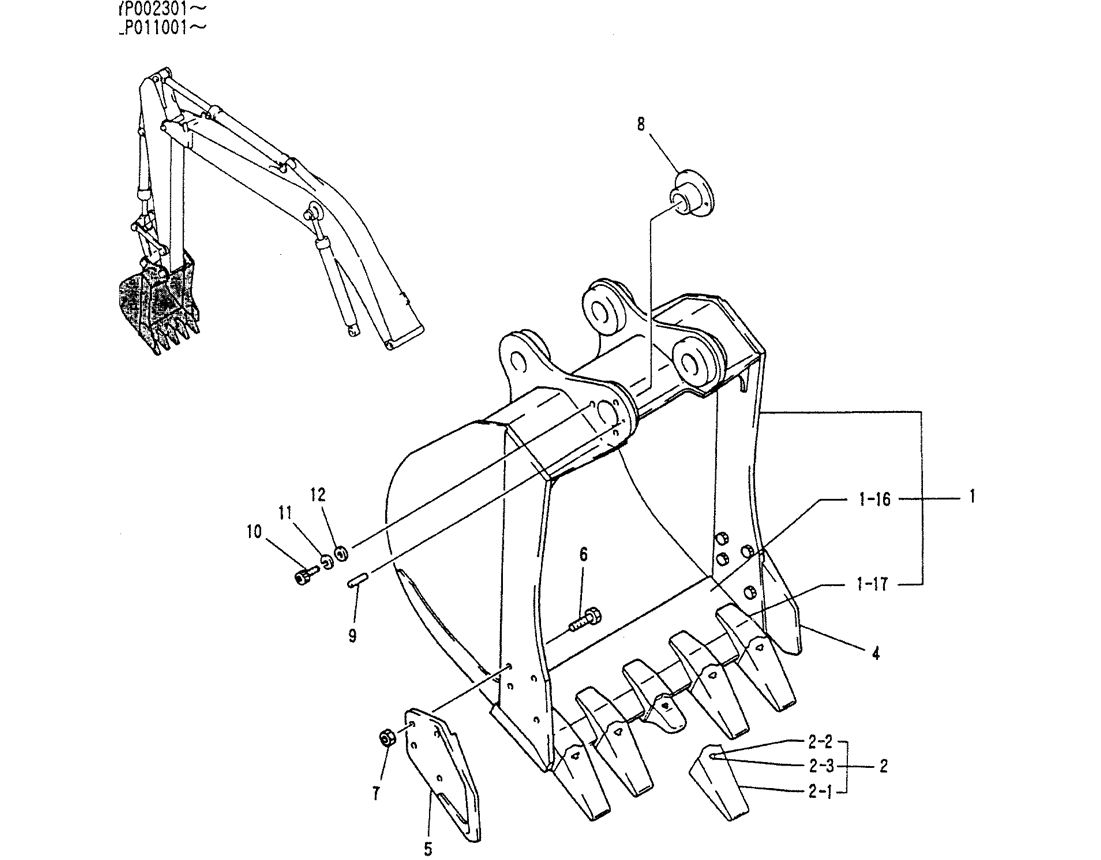

05-021 BUCKET ASSY, 0.5M

05-021 BUCKET ASSY, 0.5M-Kobelco SK120LC-5 SK120-V SK120LC-3 Excavator Parts Number Electronic Catalog EPC Manuals

05-021 BUCKET ASSY, 0.5M-Kobelco SK120LC-5 SK120-V SK120LC-3 Excavator Parts Number Electronic Catalog EPC Manuals
05-021 BUCKET ASSY, 0.5M-Kobelco SK120LC-5 SK120-V SK120LC-3 Excavator Parts Number Electronic Catalog EPC Manuals



12 30 2418T12260D1 SHIM (1.0)
11 3 ZW22K14000 LOCK WASHER ID 14.2 x OD 21.8 x Th 3.5mm
10 3 ZS23C14035 SCREW M14x2.0x35mm
9 1 2419T3772 PIN
8 1 LP61B01003P1 BUSHING
7 8 ZN13C20016 NUT M20x2.50mm
6 8 ZS13C20050 SCREW M20x2.50x50mm
5 1 2412N278D21 BLADE
4 1 2412N278D11 BLADE
2-3 1 B12P0015E3 LOCK PIN
2-2 1 B12P0015E2 PIN
2-1 1 2412U16S1 BUCKET TOOTH POINT
2 5 2412U16F1 TOOTH
1-17 5 2412U47 ADAPTER
1-16 1 LP61B01002D3 EDGE, CUTTING
1 1 LP61B00010P1 BUCKET
AR LP61B00009F2 BUCKET ASSY, 0.5 METER CUBE

8 30 2418T12260D1 SHIM (1.0)
7 3 ZW22K14000 LOCK WASHER ID 14.2 x OD 21.8 x Th 3.5mm
6 3 ZS13C14035 SCREW M14x2.0x35mm
5 1 2419T3772 PIN
4 1 LP61B01003P1 BUSHING
2-3 1 B12P0015E3 LOCK PIN
2-2 1 B12P0015E2 PIN
2-1 1 2412U16S1 BUCKET TOOTH POINT
2 5 2412U16F1 TOOTH
1-17 5 2412U47 ADAPTER
1-16 1 LP61B01002D4 EDGE, CUTTING
1 1 LP61B00016P1 BUCKET
AR LP61B00015F2 BUCKET ASSY, 0.6 METER CUBE
