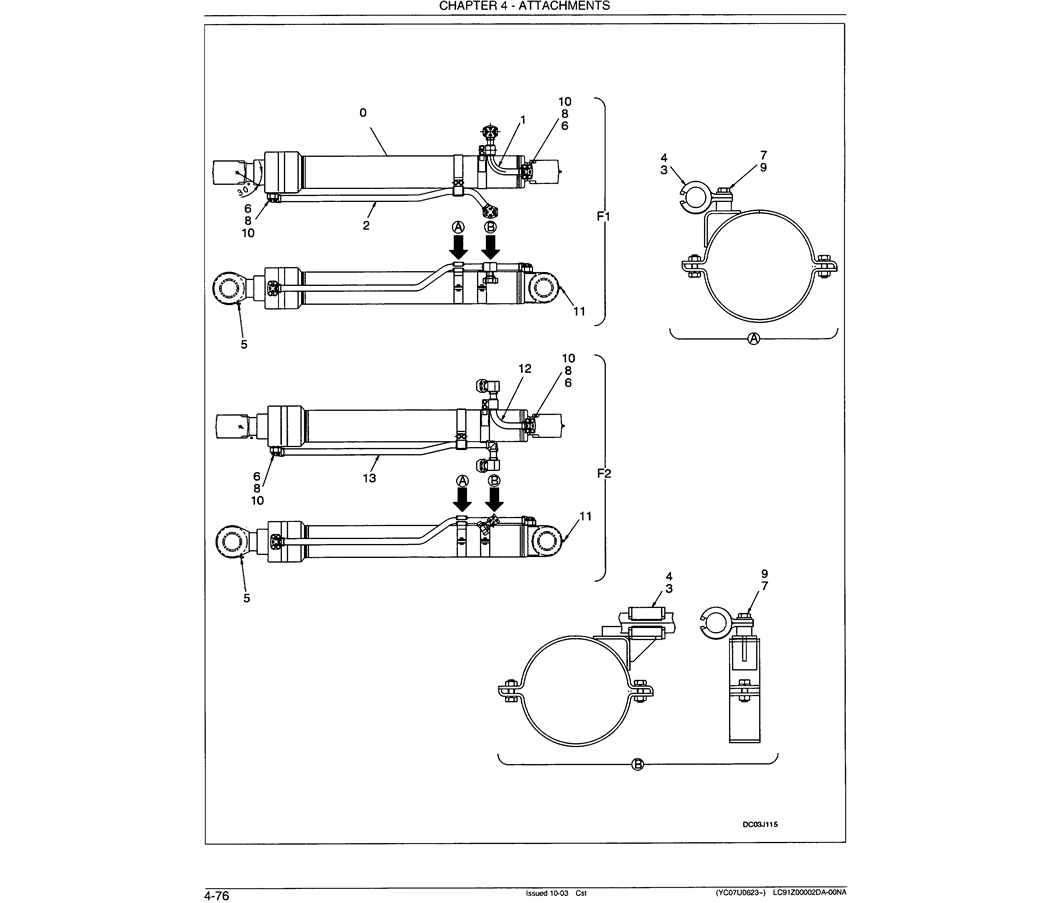

03-046 BUCKET CYLINDER HYDRAULIC LINES (BUCKET CYLINDER)
03-046 BUCKET CYLINDER HYDRAULIC LINES (BUCKET CYLINDER)-SK330LC-6E SK330-6E SK350LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals
13 1 LC43H01021P1 TUBE (F2 Only)
12 1 LC43H01020P1 RIGID TUBE (F2 Only)
11 1 ZG91S04000 LUBE NIPPLE 1/4″ PT — Straight
10 2 ZD12P03400 O-RING ID 33.70 ± 0.33 x OD 40mm
9 4 ZW16H10000 WASHER ID 11 x OD 24 x Th 3.2mm
8 8 ZW26K12000 LOCK WASHER ID 12 x OD 17.8 x Th 2.5mm
7 4 ZS18C10025 SCREW M10x1.50x25mm
6 8 ZS28C12040 SCREW M12x1.75x40mm
5 1 ZG91V02000 LUBE NIPPLE 67°x1/8″ PT
4 2 LC42H01020P1 BUSHING
2 1 LC43H01016P1 RIGID TUBE (F1 Only)
1 1 LC43H01001P1 TUBE (F1 Only)
0 1 LC01V00006F3 CYLINDER BUCKET, See Page 8-17
F2 AR LC43H00006F2 HYDRAULIC LINES, CYLINDER, SHORT ARM
F1 AR LC43H00006F1 STANDARD
PLATFORMS
3 4 LS43H01005P1 CLAMP
