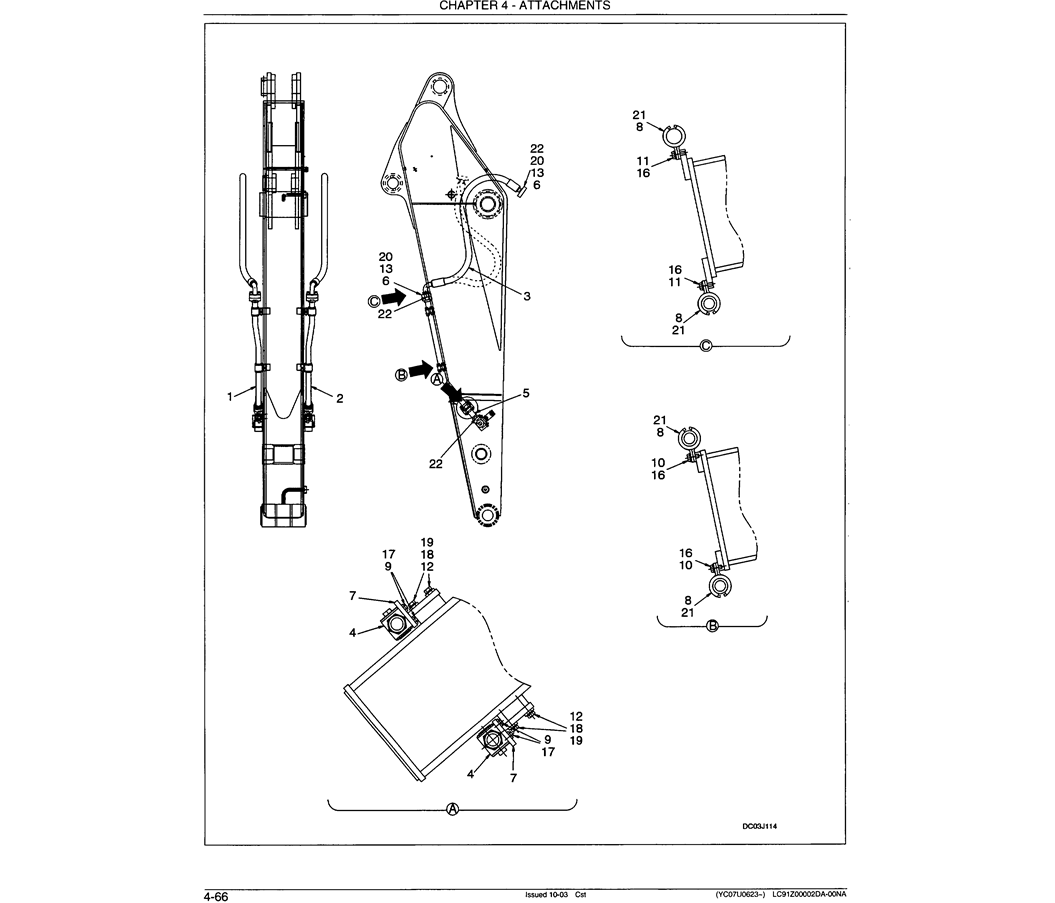

03-039 SHORT ARM HYDRAULIC LINES (NIBBLER AND BREAKER)

03-039 SHORT ARM HYDRAULIC LINES (NIBBLER AND BREAKER)-SK330LC-6E SK330-6E SK350LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals

03-039 SHORT ARM HYDRAULIC LINES (NIBBLER AND BREAKER)-SK330LC-6E SK330-6E SK350LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals
03-039 SHORT ARM HYDRAULIC LINES (NIBBLER AND BREAKER)-SK330LC-6E SK330-6E SK350LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals

22 8 ZD12P03800 O-RING ID 37.70 ± 0.37 x OD 44.7mm
21 4 LC43H01013P1 BUSHING
20 24 ZW26K14000 LOCK WASHER ID 14 x OD 21.8 x Th 3.5mm
19 4 ZW26X12000 LOCK WASHER ID 12 x OD 21 x Th 3.0mm
18 4 YN43H01163P1 WASHER ID 13 x OD 30 x Th 6.0mm
17 8 YN43H01151P1 WASHER ID 8.5 x OD 23 x Th 4.5mm
16 8 ZW16H10000 WASHER ID 11 x OD 24 x Th 3.2mm
15 8 ZN18C14011 NUT M14x2.0mm
14 8 ZS28C14070 SCREW M14x2.0x70mm
13 16 ZS28C14050 SCREW M14x2.0x50mm
12 4 ZS18C12045 SCREW M12x1.75x45mm
11 4 ZS18C10030 SCREW M10x1.50x30mm
10 4 ZS18C10025 SCREW M10x1.50x25mm
9 8 ZS18C08025 SCREW M08x1.25x25mm
8 8 LS42H01018P1 CLAMP
7 2 YN43H01150P1 U-BRACKET
6 12 ZE13X20001 CLAMP Half — (Incls. Capscrew & Lockwasher)
5 2 LC43H01019P1 HYD CONNECTOR
4 2 24100P3133F1 VALVE STOP, 1 1/4 PF Thead British Standard Parallel Pipe(BSPP)
3 2 LC43H01011D4 HOSE 1600mm Long (63 in)
2 1 LC43H01049P1 TUBE
1 1 LC43H01048P1 TUBE
AR LC43H00019F1 HYDRAULIC LINES, ARM
2 2420T4361 PLUG Not Shown, Used when aux lines not in use.
