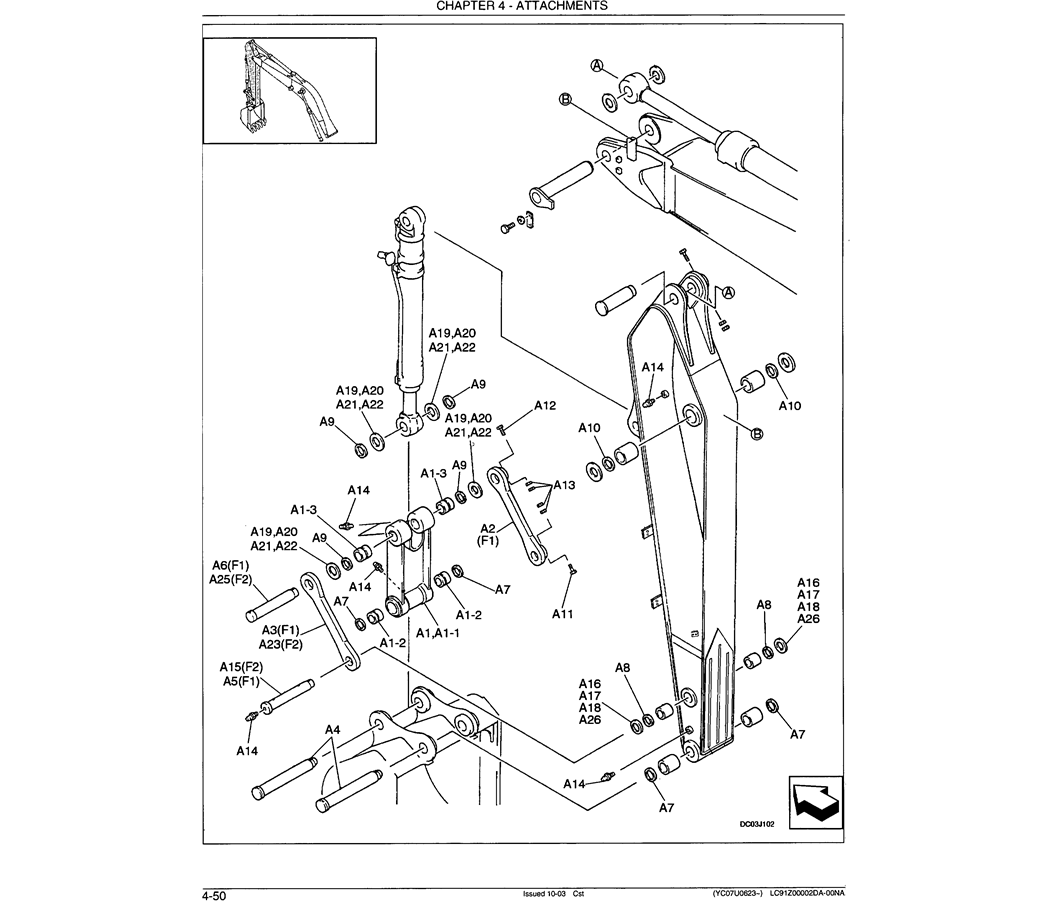

03-031 ARM GROUP

03-031 ARM GROUP-SK330LC-6E SK330-6E SK350LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals

03-031 ARM GROUP-SK330LC-6E SK330-6E SK350LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals
03-031 ARM GROUP-SK330LC-6E SK330-6E SK350LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals

A26 1 B16T0442D39 SHIM ID 82 x OD 150 x Th 0.9mm
A25 1 LC12B01053P1 PIN (F2 Only)
A24 1 LC12B01050P1 LINK (F2 Only)
A23 1 LC12B01049P1 LINK RH IDLER, (F2 Only)
A22 2 B16T0442D15 SHIM ID 92 x OD 160 x Th 2.3mm
A21 2 B16T0442D14 SHIM ID 92 x OD 160 x Th 1.6mm
A20 2 B16T0442D13 SHIM ID 92 x OD 160 x Th 1.2mm
A19 2 B16T0442D40 SHIM ID 92 x OD 160 x Th 0.9mm
A18 1 B16T0442D6 SHIM ID 82 x OD 150 x Th 2.3mm
A17 1 B16T0442D4 SHIM ID 82 x OD 150 x Th 1.6mm
A16 1 B16T0442D3 SHIM ID 82 x OD 150 x Th 1.2mm
A15 1 LC12B01051P1 PIN (F2 Only)
A14 6 ZG91S02000 LUBE NIPPLE 1/8″ PT — Straight
A13 4 ZN18C20016 NUT M20x2.5mm
A12 1 HS18C20160G2 SCREW M20x2.5x160mm
A11 1 HS18C20145G2 SCREW M20x2.5x145mm
A10 2 2445R138D10 SEAL Dust — ID 110 x OD 130 x Th 4mm
A9 4 2445R138D8 SEAL Dust — ID 90 x OD 105 x Th 4mm
A8 2 2445R138D7 GASKET Dust — ID 80 x OD 95 x Th 4mm
A7 4 2445R220D6 SEAL Dust — ID 90 X OD 105 x Th 6mm
A6 1 LC12B01020P1 PIN (F1 Only)
A5 1 LC12B01060P1 PIN (F1 Only)
A4 2 LC12B01217P1 PIN
A3 1 LC12B01058P1 LINK LH IDLER, (F1 Only)
A2 1 LC12B01057P1 LINK RH IDLER, (F1 Only)
A1-3 2 LC12B01013P1 BUSHING
A1-2 2 2405T1215 BUSHING
A1-1 1 LC12B01062P1 LINK, BUCKET
A1 1 LC12B01063F1 LINKAGE YOKE BUCKET LINK ASSEMBLY
F2 AR NA NOT SERVICED Arm Group, LC12B00136F2, Heavy Duty, Nibbler & Breaker — Heavy Duty; Not Available as an assembly, Order Components
PLATFORMS
F1 AR NA NOT SERVICED Arm Group, LC12B00136F1, General Duty — Standard Duty; Not Available as an assembly, Order Components
