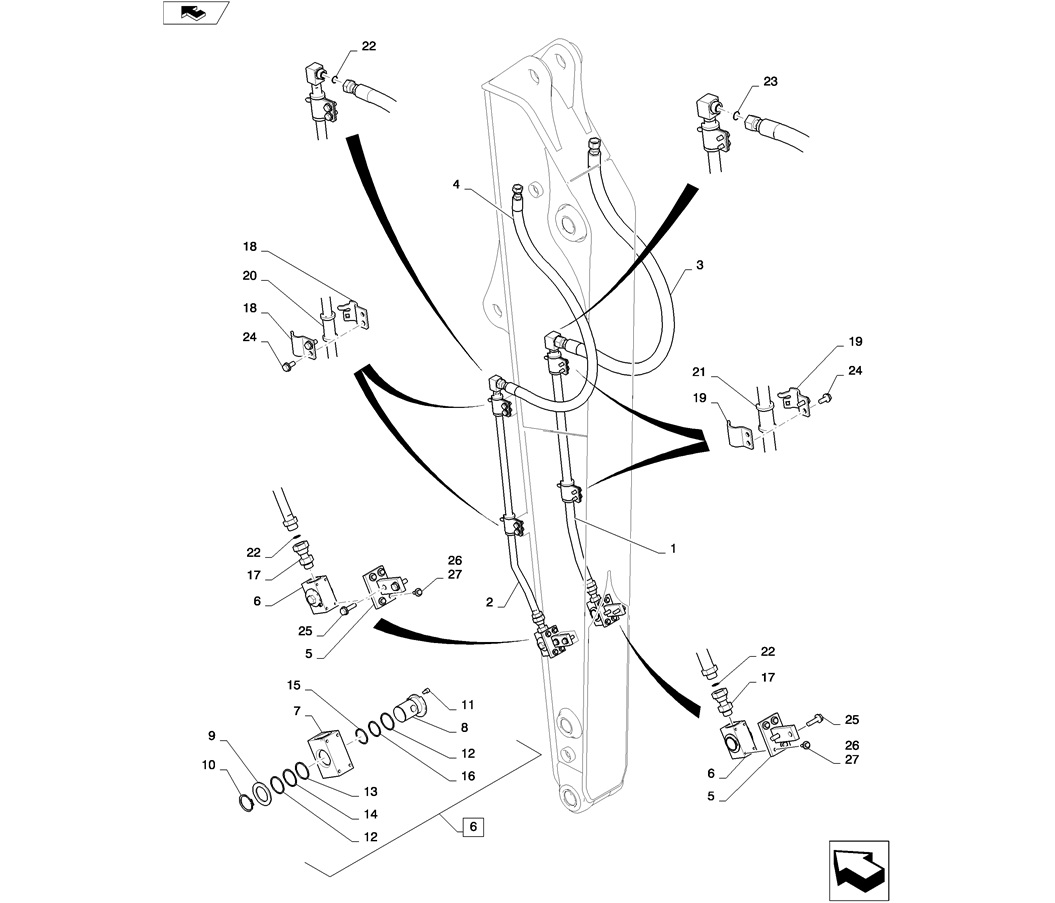

03-027(00) HYDRAULIC LINES, ARM 2.84M (NIBBLER & BREAKER)

03-027(00) HYDRAULIC LINES, ARM 2.84M (NIBBLER &
BREAKER)-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals

03-027(00) HYDRAULIC LINES, ARM 2.84M (NIBBLER &  BREAKER)-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals
03-027(00) HYDRAULIC LINES, ARM 2.84M (NIBBLER &
BREAKER)-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals

27 8 YN43H01151P1 WASHER
26 8 ZS18C08025 SCREW Cap
25 4 ZM73C12045 BOLT Sems
24 8 ZM73C12030 BOLT Sems
23 1 ZD12A02100 O-RING
22 3 ZD12A01800 O-RING
21 2 YN43H01524P1 BUSHING
20 2 YN42H02319P1 BUSHING
19 4 YN42H02363P1 CLAMP
18 4 YN42H02357P1 CLAMP
17 2 HG23H12012G1 HYD CONNECTOR
16 1 ZD85G03500 RING Back-up
15 1 ZD12G03500 O-RING
14 1 ZD75G04000 BACK-UP RING
13 1 ZD12G04000 O-RING Back-up
12 2 ZD11G04000 O-RING
11 1 ZS23C06010 SCREW Cap
10 1 ZR16X04000 RING Retaining
9 1 2418T8945D1 SPACER
8 1 2436T304 VALVE
5 2 YW43H01044P1 BRACKET
4 1 ZX50H12160 TUBE
3 1 ZX50H16165 FLEXIBLE HOSE
2 1 YY43H01343P1 TUBE
1 1 YY43H01342P1 TUBE
AR YY43H00134F1 KIT Arm 2.84M, (Nibbler & Breaker)
6 2 24100P1006F1 VALVE Stop, Includes Ref. 7 – 16
7 1 2436P230 VALVE BODY
