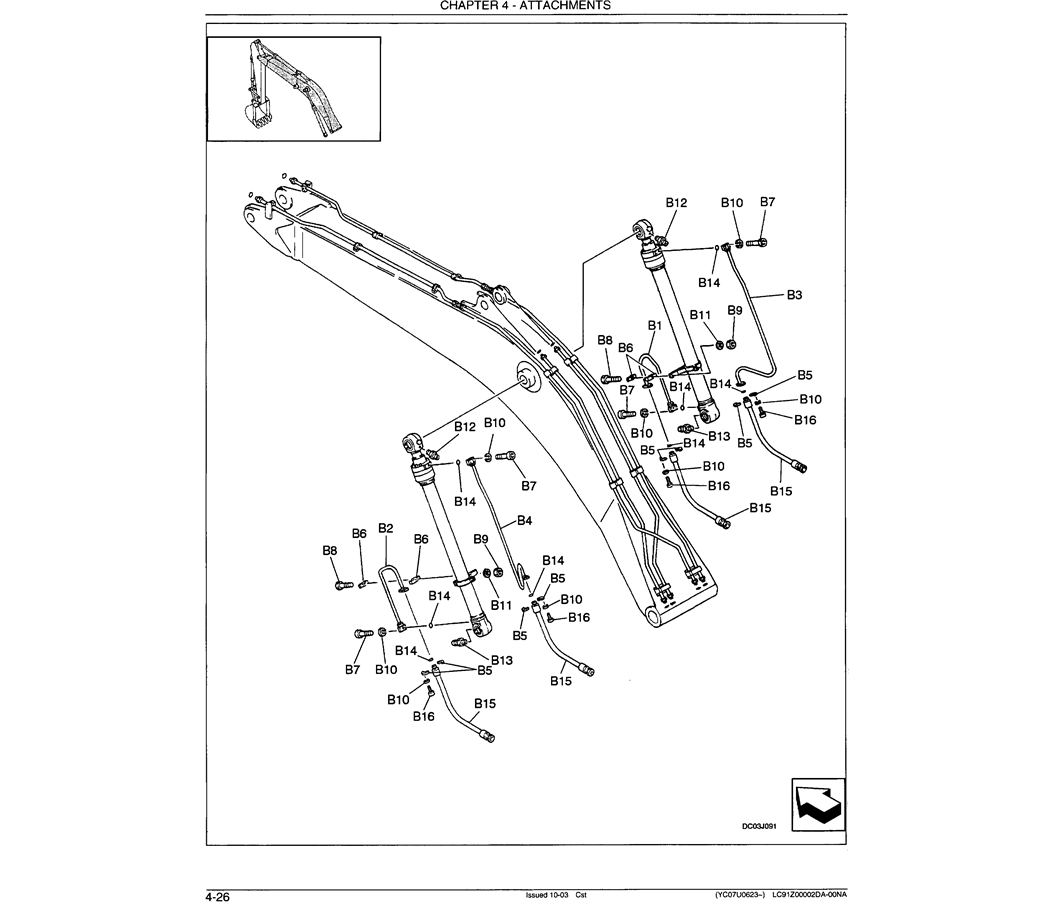

03-017 BOOM CYLINDER HYDRAULIC LINES 6.5M (21 FT – 4 IN)

03-017 BOOM CYLINDER HYDRAULIC LINES 6.5M (21 FT – 4 IN)-SK330LC-6E SK330-6E SK350LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals

B16 16 ZS28C12045 SCREW M12x1.75x45mm
B15 4 ZX20U16086 FLEXIBLE HOSE
B14 8 ZD12P03400 O-RING ID 33.70 ± 0.33 x OD 40mm
B13 2 ZG91S02000 LUBE NIPPLE 1/8″ PT — Straight
B12 2 ZH22Z04000 HYD CONNECTOR 1/4″PTx1/4″PFx37mm Long
B11 2 ZW16H14000 WASHER ID 15 x OD 29 x Th 3.2mm
B10 32 ZW26K12000 LOCK WASHER ID 12 x OD 17.8 x Th 2.5mm
B9 2 ZN18C14011 NUT M14x2.0mm
B8 2 ZS18C14085 SCREW M14x2.0x85mm
B7 16 ZS28C12040 SCREW M12x1.75x40mm
B6 4 2432T5986 CLAMP Double Block — 125x32x27mm
B5 8 ZE13X16000 FLANGE Clamp, Half — (Incls. Capscrew & Lockwasher)
B4 1 LC42H01100P1 RIGID TUBE
B3 1 LC42H01099P1 RIGID TUBE
B1 1 LC42H01104P1 RIGID TUBE
AR LC42H00023F1 HYDRAULIC LINES, BOOM CYLINDER
HYDRAULIC LINES, BOOM CYLINDER – 6.5m (21ft-4in) (NIBBLER & BREAKER)
HYDRAULIC LINES, BOOM CYLINDER – 6.5m (21ft-41in)
B2 1 LC42H01105P1 RIGID TUBE
