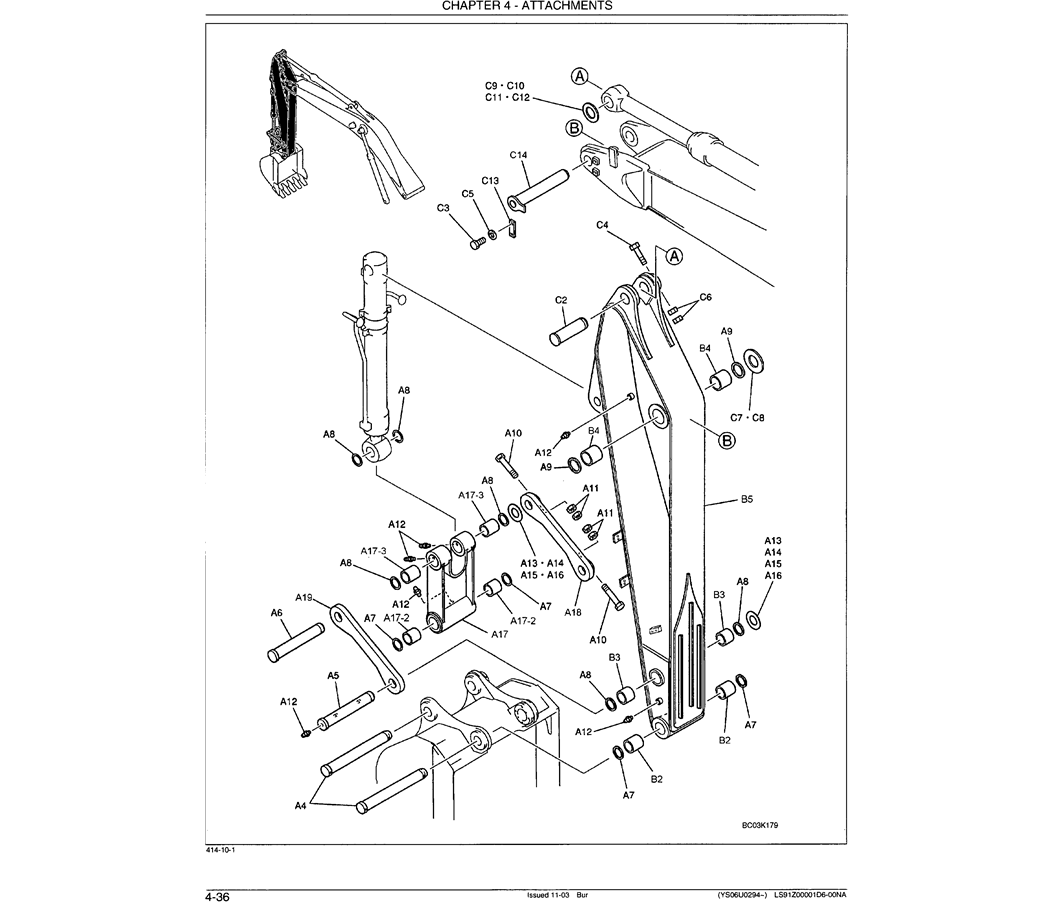

03-015 ARM ASSEMBLY 3.45M (11FT 4IN) HEAVY DUTY

03-015 ARM ASSEMBLY 3.45M (11FT 4IN) HEAVY DUTY-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals

03-015 ARM ASSEMBLY 3.45M (11FT 4IN) HEAVY DUTY-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals
03-015 ARM ASSEMBLY 3.45M (11FT 4IN) HEAVY DUTY-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals

C14 1 LS12B01209P1 PIN PIN
C13 1 2418T25049 PLATE
C12 1 2420T2571D5 SHIM ID 123 x OD 180 x Th 2.3mm
C11 1 2420T2571D4 SHIM ID 123 x OD 180 x Th 1.6mm
C10 1 2420T2571D3 SHIM ID 123 x OD 180 x Th 1.2mm
C9 1 2420T2571D10 SHIM ID 123 x OD 180 x Th 0.9mm
C8 1 2420T2747D27 SHIM ID 122 x OD 260 x Th 1.6mm
C7 1 2420T2747D26 SHIM ID 122 x OD 260 x Th 1.2mm
C6 2 ZN18C20016 NUT M20x2.5mm
C5 2 ZW16H20000 WASHER ID 21 x OD 40 x Th 4.5mm
C4 1 HS18C20200G2 SCREW M20x2.5x200mm
C3 2 ZS18C20040 SCREW M20x2.50x40mm
C2 1 LS12B01011P1 PIN
AR LS12B00010F8 ARM INSTALLATION
B5 1 LS12B00064P1 ARM
B4 2 2405T1334 BUSHING ID 120 x OD 145 x130mm Long
B3 2 2405T1950 BUSHING
B2 2 LS12B01025P1 BUSHING
AR LS12B00007F7 ARM ARMY ASSY
A19 1 LS12B01050F1 LINK
A18 1 LS12B01030F1 LINK
A17-3 2 LS12B01035P1 BUSHING
A17-2 2 LS12B01046P1 BUSHING
A17 1 LS12B01040F2 LINK
A15 2 2420T2747D3 SHIM ID 102 x OD 170 x Th 1.6mm
A14 2 2420T2747D2 SHIM ID 102 x OD 170 x Th 1.2mm
A13 2 2420T2747D19 SHIM ID 102 x OD 170 x Th 0.9mm
A12 6 ZG91S02000 LUBE NIPPLE 1/8″ PT — Straight
A11 4 ZN18C20016 NUT M20x2.5mm
A10 2 HS18C20180G2 SCREW M20x2.5x180mm
A9 2 2445Z1444 DUST CAP Seal — ID 120 x OD 145 x Th 4mm
A8 6 2445R138D9 SEAL Dust — ID 100 x OD 120 x Th 4mm
A7 4 2445R372D5 DUST CAP SEAL
A6 1 LS12B01094P1 PIN
A5 1 LS12B01091P1 PIN
A4 2 2419P3582 PIN
AR LS12B00011F2 ARM GROUP
A16 2 2420T2747D4 SHIM ID 102 x OD 170 x Th 2.3mm
