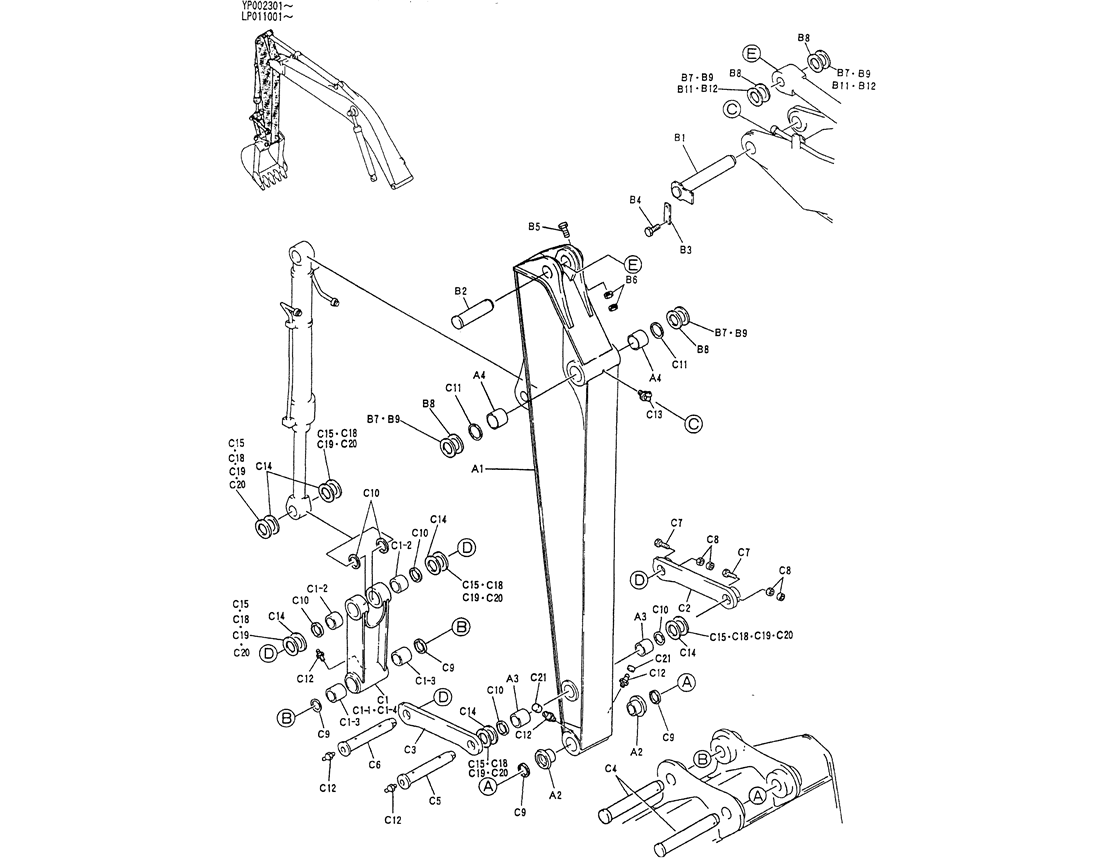

03-004 STD ARM ASSY 2.5M

03-004 STD ARM ASSY 2.5M-Kobelco SK120LC-5 SK120-V SK120LC-3 Excavator Parts Number Electronic Catalog EPC Manuals



03-004 STD ARM ASSY 2.5M-Kobelco SK120LC-5 SK120-V SK120LC-3 Excavator Parts Number Electronic Catalog EPC Manuals
03-004 STD ARM ASSY 2.5M-Kobelco SK120LC-5 SK120-V SK120LC-3 Excavator Parts Number Electronic Catalog EPC Manuals



C21 2 YN12B01128P1 COVER
C20 6 B16T0442D19 SHIM ID 62 x OD 100 x Th 1.6mm
C19 6 B16T0442D27 SHIM ID 62 x OD 100 x Th 1.2mm
C18 6 B16T0442D56 SHIM ID 62 x OD 100 x Th 0.5mm
C15 6 B16T0442D43 SHIM ID 62 x OD 100 x Th 0.9mm
C14 6 YW12B01025P1 SHIM ID 62 x OD 100 x Th 3.0mm
C13 1 ZG91U02000 LUBE NIPPLE 90°x1/8″ PT
C12 5 ZG91S02000 LUBE NIPPLE 1/8″ PT — Straight
C11 2 2445R138D6 GASKET Seal, Dust — ID 70 x OD 85 x Th 4mm
C10 6 2445R138D3 SEAL Dust — ID 60 x OD 75 x Th 4mm
C9 4 2445R220D2 SEAL Dust — ID 65 x OD 80 x Th 5mm
C8 4 ZN18C14011 NUT M14x2.0mm
C7 2 HS18C14115G1 SCREW M14x2.0x115mm
C6 1 LP12B01029P1 PIN
C5 1 LP12B01028P1 PIN
C4 2 LP12B01027P1 PIN
C3 1 YW12B01034P1 LINK
C2 1 YW12B01033P1 LINK
C1-4 1 LP12B01053P1 LINK, BUCKET, ASN LP011097
C1-4 1 LP12B01053P1 LINK, BUCKET, ASN YP002301
C1-3 2 LP12B01036P1 BUSHING
C1-2 2 LP12B01031P1 BUSHING
C1-1 1 LP12B01034P1 LINK, BUCKET, BTW LP011001 & LP011096
C1 1 LP12B00005F2 LINK CONROD , ASN LP011097
C1 1 LP12B00005F2 LINK CONROD , ASN YP002301
C1 1 LP12B00005F1 LINK, BUCKET, BTW LP011001 & LP011096
B12 AR LP12B00009F1 ARM GROUP
B12 2 B16T0442D2 SHIM ID 72 x OD 130 x Th 1.6mm
B11 2 B16T0442D1 SHIM ID 72 x OD 130 x Th 1.2mm
B9 4 B16T0442D57 SHIM ID 72 x OD 130 x Th 0.5mm
B8 4 YN12B01009P1 SHIM (3.0)
B7 4 B16T0442D44 SHIM ID 72 x OD 130 x Th 0.9mm
B6 2 ZN18C12010 NUT M12x1.75mm
B5 1 HS18C12125G1 SCREW CAP
B4 2 ZS18C12020 SCREW M12x1.75x20mm
B3 1 2418T12645D2 PLATE 125 x 261 x Th 9.0mm
B2 1 YW02B01059P1 PIN
B1 1 LP02B01012P2 PIN , ASN LP012968
B1 1 LP02B01012P2 PIN , ASN YP002361
B1 1 LP02B01012P1 PIN, BTW LP011001 & LP012967
B1 1 LP02B01012P1 PIN, BTW YP002301 & YP002360
A4 2 LP12B00011F1 ARM INSTAL
A4 2 LP12B01032P1 BUSHING BUSHING
A3 2 YW12B01042P1 BUSHING BUSHING
A2 2 LP12B01030P1 BUSHING BUSHING
A1 1 LP12B00019P1 ARM
AR NSS NOT SERVICED SEPARATELY ARM ASSY,2.5M
AR LP12800002F1 ARM
