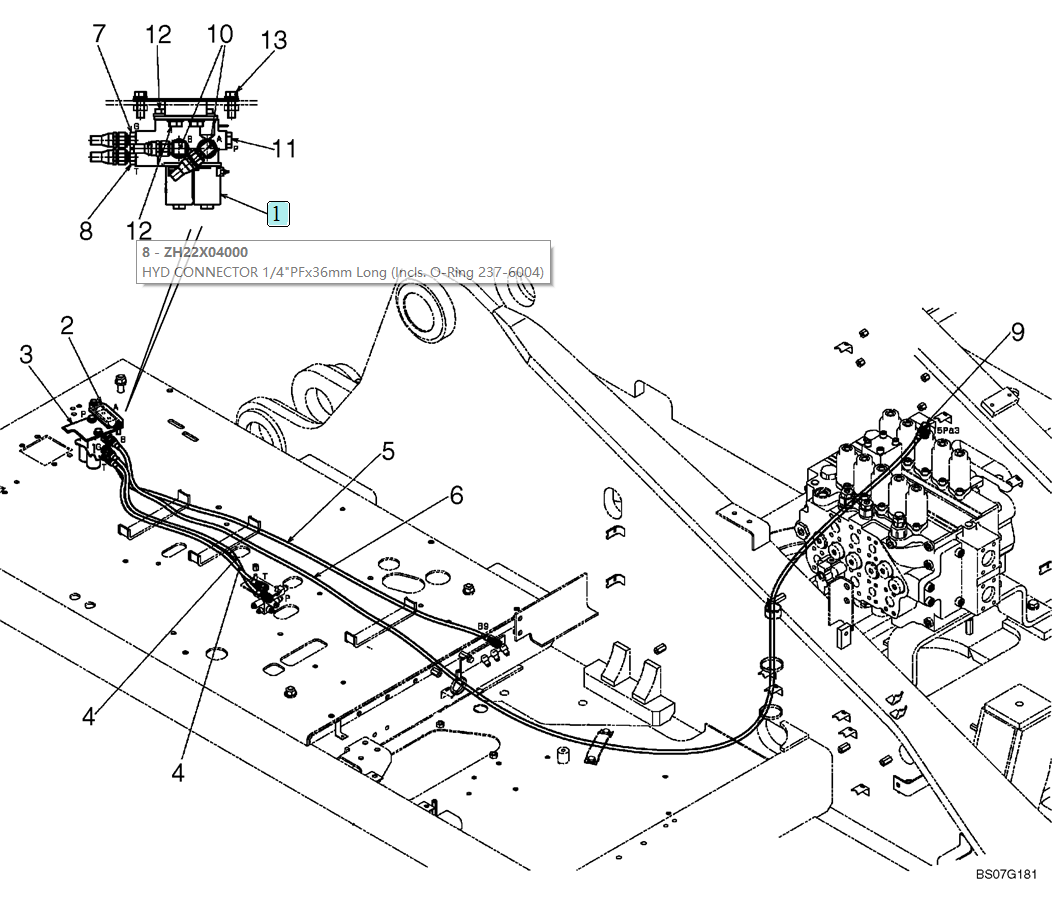

02-37(00) CONTROL LINES, REMOTE (HAND NIBBLER & BREAKER) (LS68H00051F1)

02-37(00) CONTROL LINES, REMOTE (HAND NIBBLER &
BREAKER) (LS68H00051F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals

02-37(00) CONTROL LINES, REMOTE (HAND NIBBLER &  BREAKER) (LS68H00051F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals
02-37(00) CONTROL LINES, REMOTE (HAND NIBBLER &
BREAKER) (LS68H00051F1)-SK460-8 SK485-8 Kobelco Excavator Parts Number Electronic Catalog EPC Manuals

13 2 HM83C10030G1 BOLT M10x30mm
12 4 ZM73C10020 BOLT M10x1.50x20mm (Incls. Washer)
1 ZD12P01100 O-RING (Part of ZE72X04000), ID 10.80 ± 0.18 x OD 15mm, Not Shown
11 1 ZE72X04000 PLUG (PF 1/4) (Incls. O-Ring ZD12P01100)
1 237-6004 O-RING (Part of ZH32X04000), SAE No. 4-1, Not Shown
10 2 ZH32X04000 HYD CONNECTOR Elbow, 90° — PF 1/4, (Incls. O-Ring 237-6004)
1 237-6006 O-RING (Part of ZH32X04006), SAE No. 6-1, Not Shown
9 1 ZH32X04006 ELBOW 90° — 1/4″x3/8″PF (Incls. O-Ring 237-6006 Alternate ZD12P01400)
1 237-6004 O-RING (Part of ZH22X04000), SAE No. 4-1, Not Shown
8 1 ZH22X04000 HYD CONNECTOR 1/4″PFx36mm Long (Incls. O-Ring 237-6004)
1 ZD12P01100 O-RING (Part of HH25X04004G2), ID 10.80 ± 0.18 x OD 15mm, Not Shown
7 1 HH25X04004G2 HYD CONNECTOR (Incls. O-Ring ZD12P01100)
6 1 2420R349D390 HOSE 3900.00 mm
5 1 2420R349D165 HOSE 1650.00 mm
3 1 LC68H01084P1 BRACKET
2 1 LC68H01081P1 BRACKET
1 1 LC35V00004F3 HYDRAULIC VALVE Assembly, Solenoid, See Figure 08-15
Remote Control Lines, (HAND NIBBLER & BREAKER), LS68H00051F1
4 2 2420R349D090 HOSE 900.00 mm, 900mm Long (35-7/16 in)
