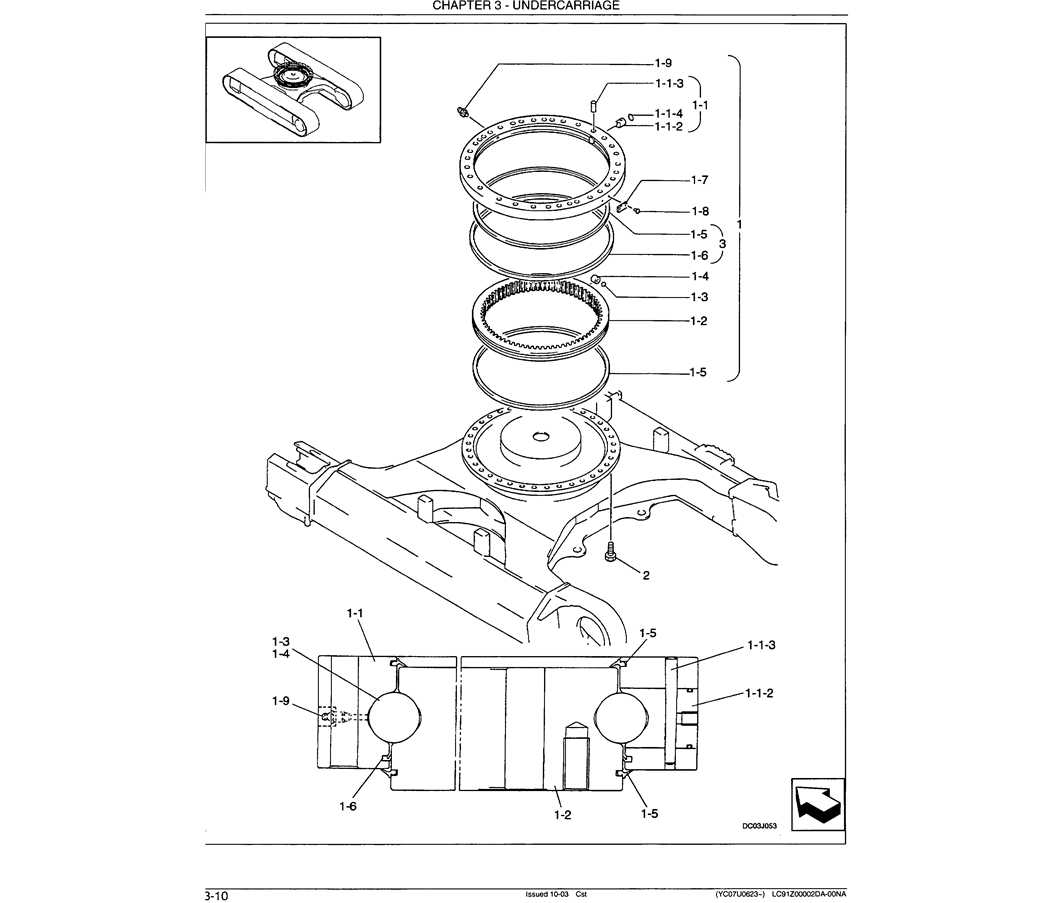

02-006 SLEWING RING ASSEMBLY
02-006 SLEWING RING ASSEMBLY-SK330LC-6E SK330-6E SK350LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals
3 1 NA NOT SERVICED SEAL KIT – Consist Of Items 1-5, 1-6 — Was 2445P114D12
2 36 2420P1619D1 SCREW M24x2.0x90mm
1-9 1 ZG91S02000 LUBE NIPPLE 1/8″ PT — Straight
1-8 2 4020Z64 RIVET OD 5.0 x 6.0mm Long
1-7 1 YN22T00191P1 PLATE NAME
1-5 2 2445P165D13 SEAL
1-4 84 2425T502 RETAINER
1-3 84 2425T501 BALL 47.625mm (1-7/8 in) Steel
1-2 1 2425N471 RACE, INNER
1-1-4 1 ZD11P05000 O-RING
1-1-3 1 2419T8031D1 PIN
1-1-2 1 2420T9048 PLUG
1-1 1 LC40F01010P1 RACE, OUTER
1 1 LC40F00012F1 SLEWING RING RING, SLEWING
AR LB40F00005F1 RING ASSEMBLY, SLEWING
1-6 1 2445T390 SEAL
