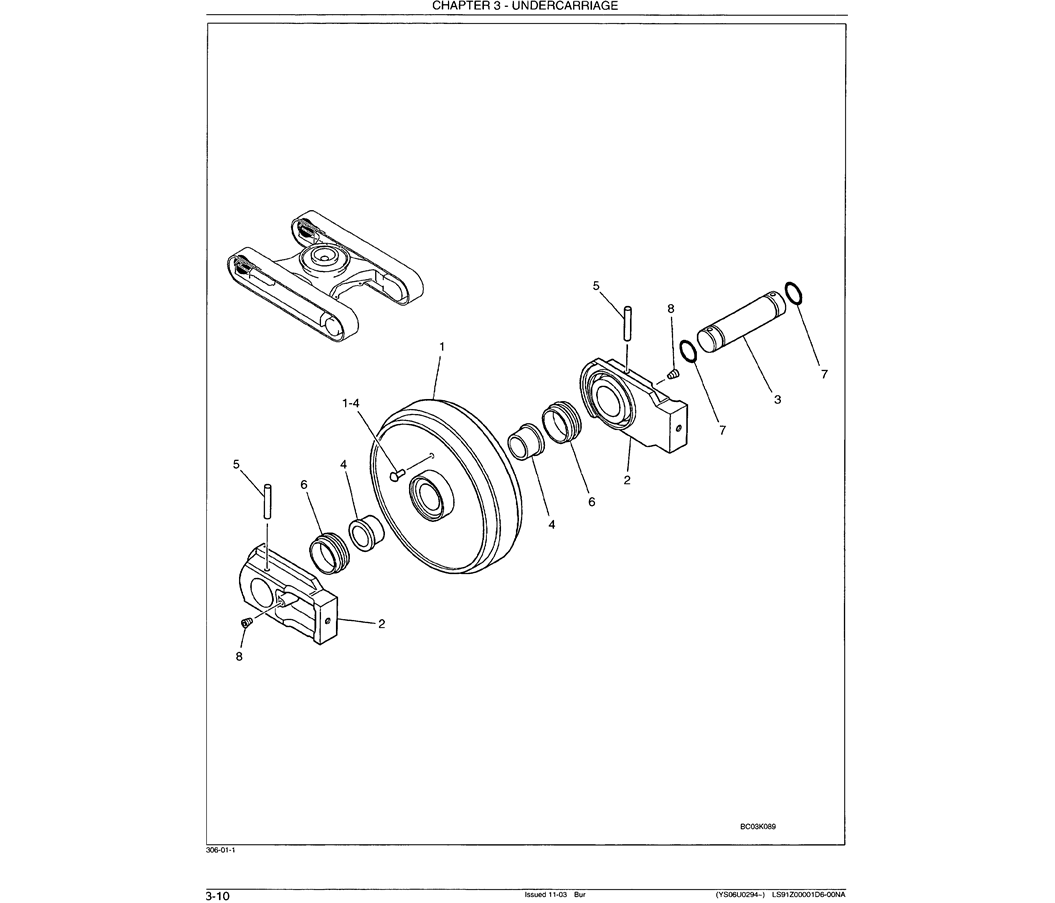

02-005 IDLER ASSEMBLY

02-005 IDLER ASSEMBLY-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals

02-005 IDLER ASSEMBLY-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals
02-005 IDLER ASSEMBLY-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals

8 2 ZE82T02000 PLUG Pipe, 1.25″ PT
7 2 ZD11G10500 O-RING ID 104.40 ± 0.87 x OD 110mm
6 2 2445U266D24 SEAL
5 2 2419T2669D1 PIN OD 20 x 157mm Long
4 2 2405P692 BUSHING ID 110 x OD 125 x 85mm Long
2 2 LS52D01001P1 RING
1-4 1 4020Z64 RIVET OD 5.0 x 6.0mm Long
1 2 2413N500 IDLER
1 LS52D00002F1 IDLER WHEEL
3 1 2410P814 SHAFT OD 110 x 435mm Long









Kobelco Part Number Information parts manager pro is the electronic parts Catalog Kobelco EPC and parts manuals.
Kobelco original directory on the selection of spare parts for machinery Kobelco.
Contact us for genuine Kobelco Excavator repair parts and engine parts.
If you need a complete Kobelco parts catalog and accessories repair manual, you can contact us for free.
