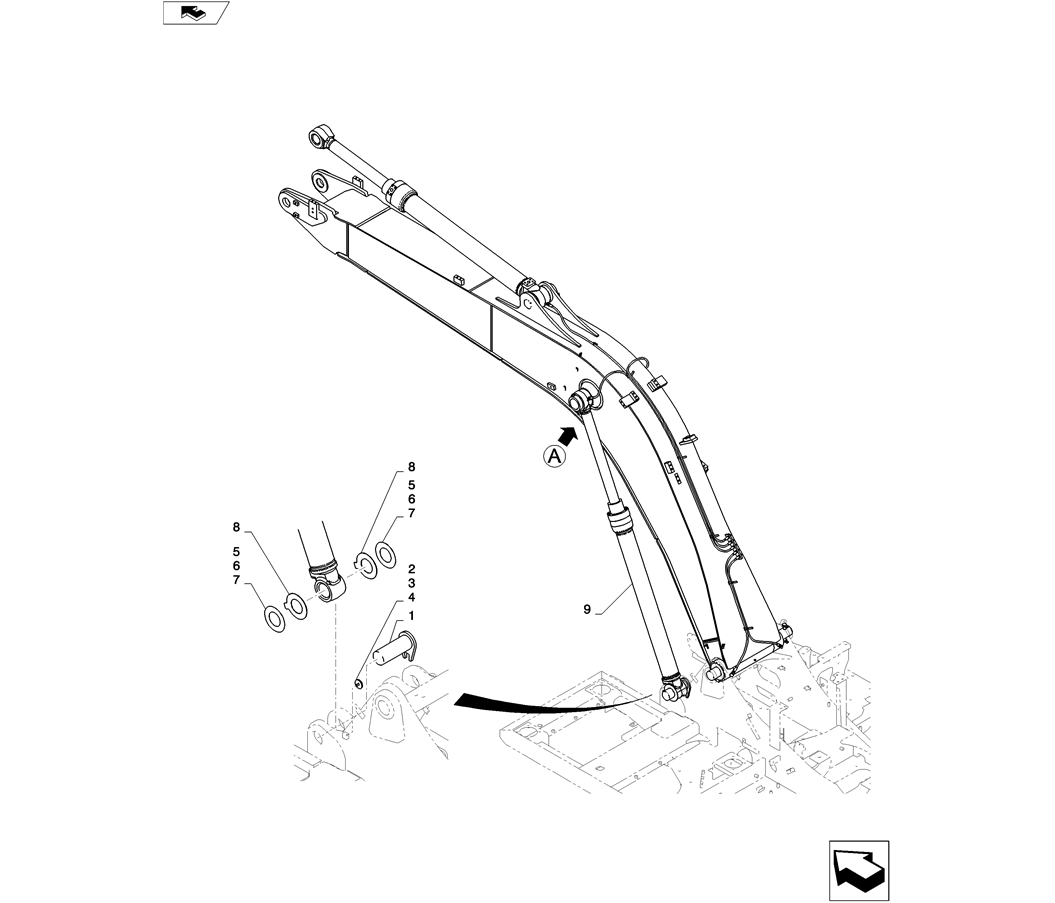

03-011(01) CYLINDER INSTALLATION (BOOM)

03-011(01) CYLINDER INSTALLATION (BOOM)-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals

03-011(01) CYLINDER INSTALLATION (BOOM)-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals
03-011(01) CYLINDER INSTALLATION (BOOM)-2 SK130-8 SK140LC Excavator Parts Number Electronic Catalog EPC Manuals

9 2 YY01V00053F3 LIFT CYLINDER Boom
8 4 YN12B01602D1 SHIM 2.0
6 1 B16T0442D44 SHIM 0.9
5 1 B16T0442D2 SHIM 1.6
4 2 ZW16H10000 WASHER
3 2 2418T21137 WASHER
2 2 ZS18C10020 SCREW Cap
1 2 YY02B01174P1 PIN
AR YY02B00189F1 (Boom)
7 1 B16T0442D57 SHIM 0.5
