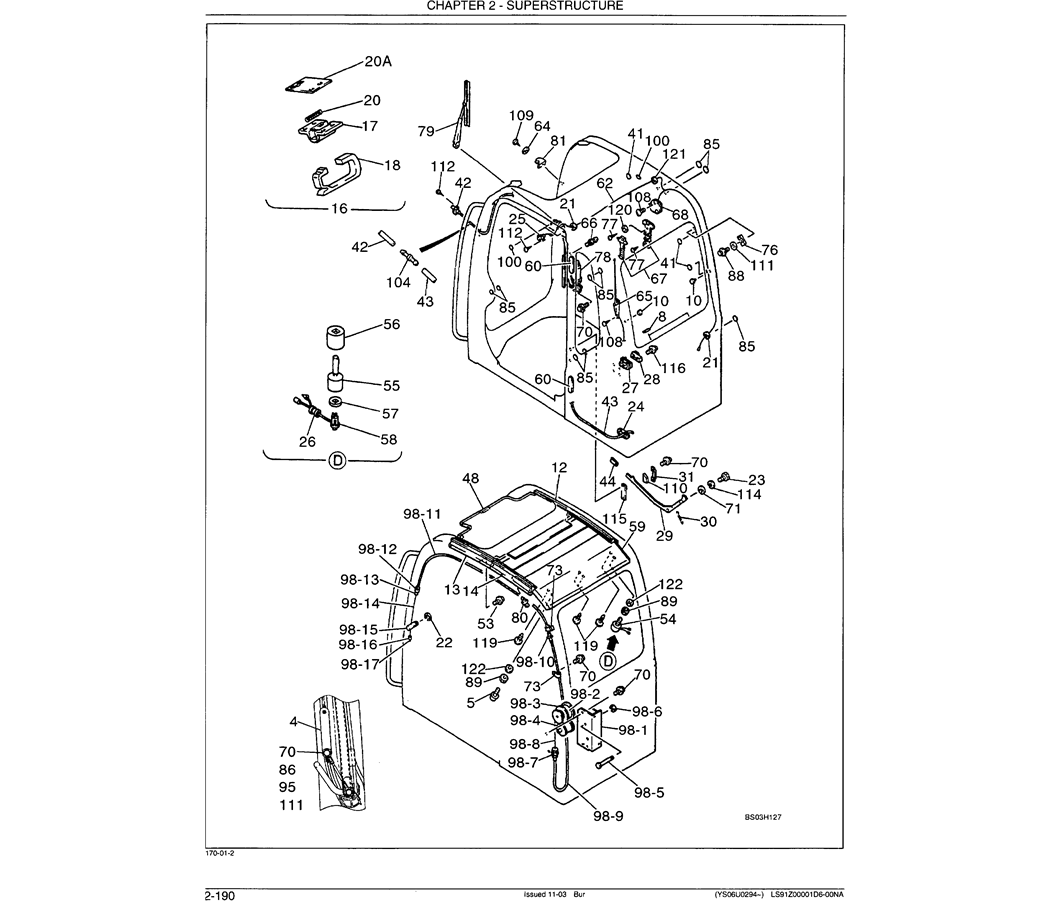

01-092 CAB ASSY WIPERS, SUNVISOR AND ANTENNA

01-092 CAB ASSY WIPERS, SUNVISOR AND ANTENNA-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals

122 2 YT02C01268P1 WASHER
121 1 2420R372D8 GROMMET
120 1 ZW16K05000 WASHER ID 05 x OD 10 x Th 1.0mm
119 4 YN02C01880P1 CLIP
116 2 ZM22C08020 BOLT M08x1.25x20mm (Incls. Washer & Lockwasher)
115 1 YT02C01280P1 SPACER
114 1 ZW26X08000 WASHER Lock — ID 08 x OD 15 x Th 2.0mm
112 4 ZS32T40012 SCREW M04x12mm Self-Taper
111 4 2420T4505 WASHER ID 07 x OD 16 x Th 1.0mm
110 1 YT02C01275P1 LABEL
109 1 2420Z1227D4 SCREW M06x1.0x20mm
108 4 ZS31C05010 BOLT M05x0.8x10mm
104 1 PY21V01001P1 CHECK VALVE
100 5 YT02C01261D2 PLATE
98-17 1 YN02C01736S017 CAP
98-16 1 YN02C01736S016 CLAMP
98-15 1 YN02C01736S015
98-14 1 YN02C01736S014 TUBE
98-13 2 YN02C01736S013 CLAMP CLAMP
98-12 1 YN02C01736S012 CAP
98-11 1 YN02C01736S011 PIN
98-10 1 YN02C01736S010 CAP
98-9 1 YN02C01736S009 TUBE
98-8 1 YN02C01736S008 CABLE
98-7 1 YN02C01736S007 CAP
98-6 2 ZR36X00600 SNAP RING E-Ring — Shaft 06mm x OD 12mm
98-5 2 YN02C01736S005 SHAFT
98-4 1 YN02C01736S004 SHAFT
98-3 1 YN02C01736S003 SHAFT
98-2 1 YN02C01736S002 SPRING
98-1 1 YN02C01736S001 BRACKET
98 1 YN02C01736F1 CABLE
95 1 YN02C02148P1 RUBBER
89 4 ZN18F10008 NUT M10x1.25mm
88 2 ZM46C06020 BOLT M06x1.0x20mm (Incls. Washer & Lockwasher)
86 1 YN02C01914P2 WASHER
85 8 YT02C01261D3 PLATE
81 1 YN02C01294P1 STOP
80 6 YN02C01820P1 CLIP
79-2 1 YN53C01003S002 WIPER BLADE Only, Not Shown
79-1 1 YN53C01003S001 WIPER ARM Only, Not Shown
79 1 YN53C01003F1 WIPER ARM ASSY
78 1 YN53C00011P1 WIPER Motor Assembly — No service competes
77 2 ZS32T40020 SCREW M04x20mm Self-Taper
76 2 YT02C01140P1 STOP
73 2 YT02C01161P1 CLAMP
71 1 2418T12753 WASHER ID 09 x OD 30 x Th 3.2mm
70 12 ZM66C06016 BOLT M06x1.0x16mm (Incls. Washer & Lockwasher)
68 1 YT80S00001P1 LIGHT
67 1 YN01T01012F1 HAMMER
66 1 YT02C01134P1 HOOK
65 1 YT54S00001P1 ANTENNA
64 1 2418Z725D3 WASHER ID 06 x OD 11.5 x Th 1.6mm
62 1 YN02C01761P1 HARNESS
60 2 YT02C01129P1 COVER
59 1 YN02C02019P1 PAD
58 1 YN50E00006P1 SWITCH ASSY
57 1 YT02C01307P1 PLATE
56 1 YT02C01306P1 RUBBER
55 1 YN02C02963P1 PLUG Stop — M10x1.25x43mm Long
55 1 YT02C01304P1 STOP M10x1.25x36mm Long — Replaced by YN02C02963P1
54 1 YT02C01330F2 STOP Assembly
53 8 YN02C01875D1 SCREW M05x0.8x16mm Long
48 1 YN55C00005P1 SUN VISOR
44 1 YT02C01274P1 COVER
43 1 YT02C01126D1 TUBE 3500mm Long (137-51/64 in)
42 1 YT54C00001P1 WINDSHIELD WASHER ASSY, WINDOW
41 3 YT02C01261D1 PLATE TUBE
31 1 YT02C01276P1 COVER
30 1 YT02C01207P1 SPRING
29 1 YN02C02117P1 LEVER
28 1 YT02C01124P1 COVER
27 1 YT02C01109F1 CATCH ASSY, DOOR
26 1 YN03M01159P1 GROMMET
25 1 YT50S00004P1 SWITCH
24 1 YT02C01235P1 GROMMET
23 1 ZS18C08030 SCREW M08x1.25x30mm
22 1 ZR36X00800 RING
21 2 2420R372D14 GROMMET
20A 1 YN02C01888P1 PACKING
20 1 YT02C01232S004 SPRING
19 1 YT02C01232S003 COVER Not Illustrated
18 1 YT02C01232S002 HANDLE
16 2 YT02C01232F1 LOCK ASSY
14 1 YN02C01955P1 RAIL ASSY.
13 1 YN02C01954P1 RAIL ASSY.
12 1 YN02C01953P2 RAIL ASSY.
10 2 YT02C01070P1 RUBBER SLEEVE
8 2 YT02C01081D1 SEAL
5 1 YT02C01066P1 STOP
4 1 YN02C01913F1 PLATE
1 YN02C00103F2 CAB ASSY
17 1 YT02C01232S001 BASE
