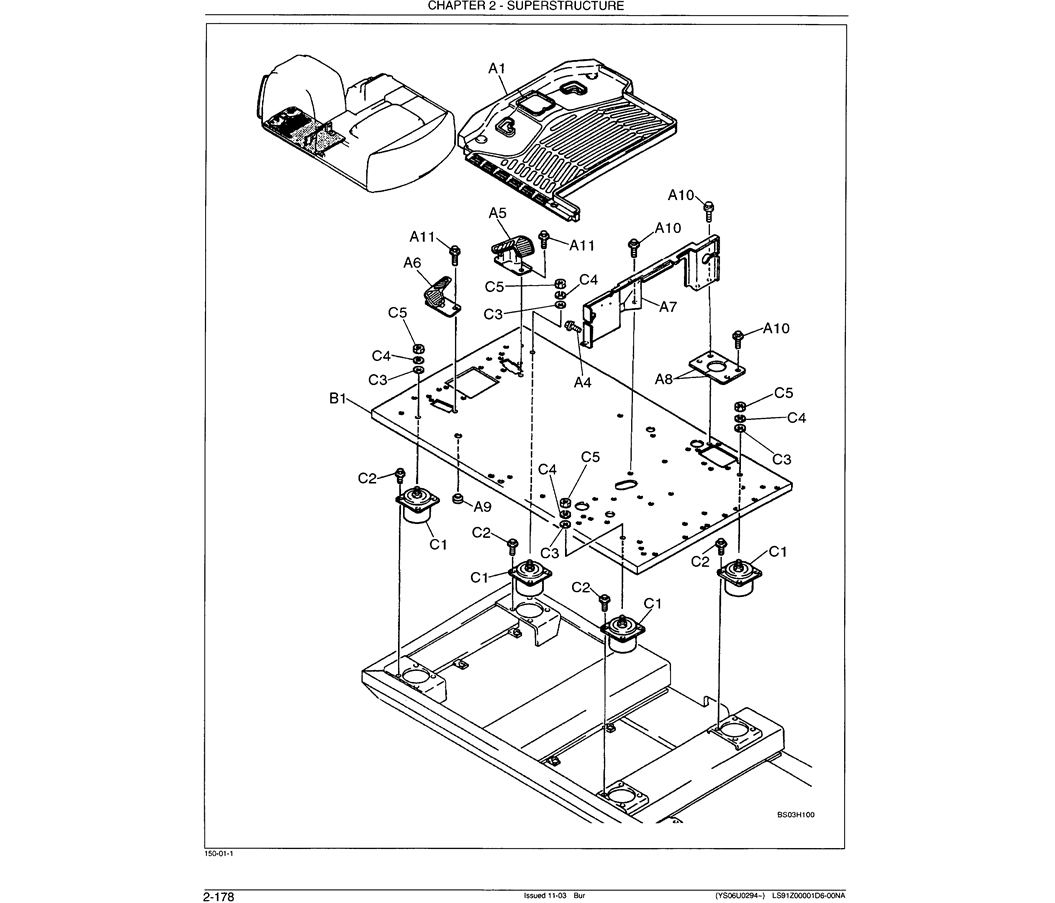

01-087 FLOOR PLATE GROUP STANDARD

01-087 FLOOR PLATE GROUP STANDARD-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals

 01-087 FLOOR PLATE GROUP STANDARD-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals
01-087 FLOOR PLATE GROUP STANDARD-Kobelco SK480LC-6E SK480-6S SK480LC-6 SK450-6 Excavator Parts Number Electronic Catalog EPC Manuals

C5 4 ZN18C16013 NUT M16x2.0mm
C4 4 ZW26X16000 LOCK WASHER ID 16 x OD 28 x Th 4.0mm
C3 4 ZW16H16000 WASHER ID 17 x OD 32 x Th 4.5mm
C2 16 ZM12C10030 BOLT M10x1.50x30mm (Incls. Lockwasher)
C1 4 YN03M01245P1 ENGINE MOUNT RUBBER
AR YN03M00023F1 SPARE PART FLOOR PLATE INSTALLATION
B1 1 LC03M00008P1 PLATE FLOOR
A11 4 ZM22C10030 BOLT M10x1.50x30mm (Incls. Washer & Lockwasher)
A9 1 2420R603D6 GROMMET
A8 2 YN03M01479P1 COVER
A7 1 YN03M01440P1 COVER
A6 1 YN03M01335P1 SUPPORT
A5 1 YN03M01334P1 SUPPORT
A4 1 ZM22C08016 BOLT M08x1.25x16mm (Incls. Washer & Lockwasher)
A1 1 YN26M00053P1 FLOOR MAT
AR YN03M00087F1 PLATE GROUP, FLOOR – Standard
A10 5 ZM27C08025 BOLT M08x1.25x25mm (Incls. Washer & Lockwasher)
