08-037 CHASSIS HARNESS EQUIPMENT-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals 83498BS 1 VAMH057642 CONNECTION WIRING,…

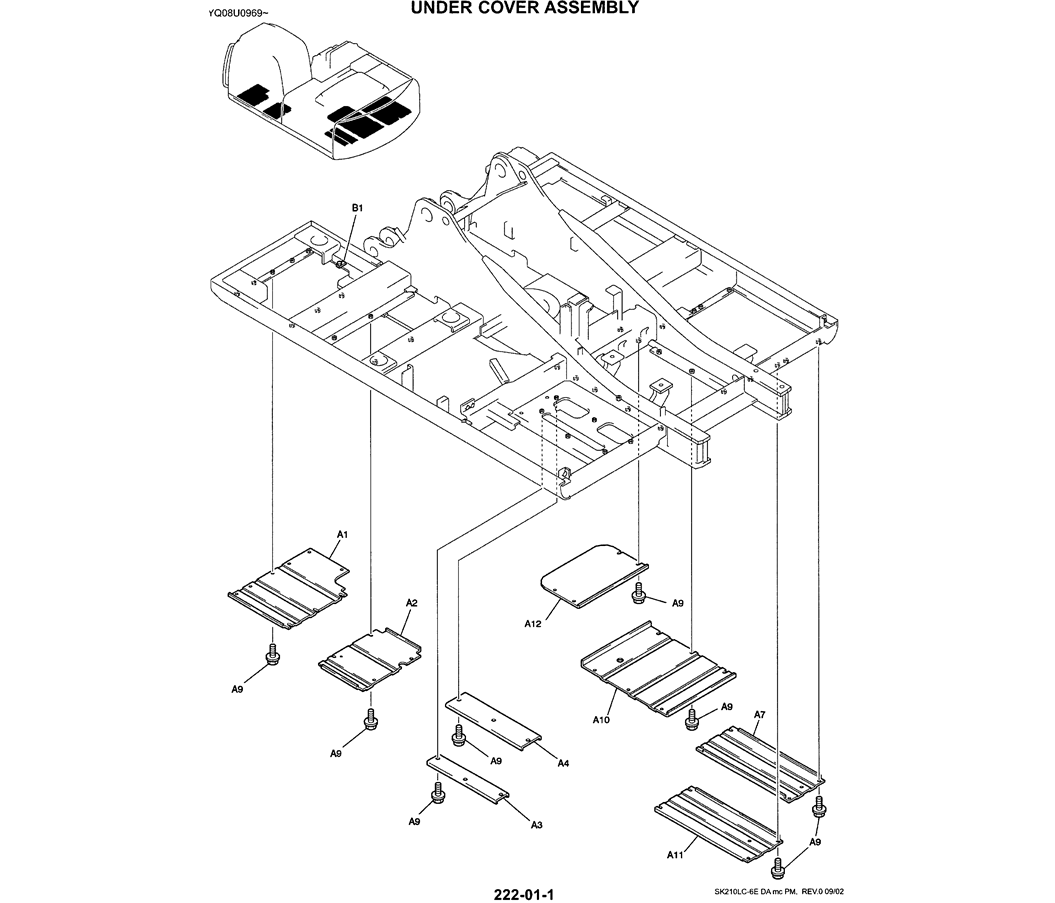

01-050 UNDER COVER ASSEMBLY
01-050 UNDER COVER ASSEMBLY-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals
B1 1 2416T13049D6 BLOCK TAPPED
A12 1 YN24C01212P1 COVER
A11 1 YN24C01219P2 COVER
A9 37 ZM32C12030 BOLT M12x1.75x30mm (Incls. Washer & Lockwasher)
A7 1 YN24C01220P2 COVER
A4 1 YN24C01158P1 COVER
A3 1 YN24C01157P1 COVER
A2 1 YN24C01211P1 COVER
A1 1 YN24C01210P2 COVER
YN24C00022F2 COVER ASSY, UNDER
A10 1 YN24C01218P1 COVER
