01-046 CONDITIONER, AIR AC

01-046 CONDITIONER, AIR AC -Kobelco SK60-3 SK60-5 SK60 Excavator Parts Number Electronic Catalog EPC Manuals

43 1 PY01P01043D3 CLIP Wire Ties — 188mm Long, ASN LE019022
42 2 PY01P01043D5 CLIP Wire Ties — 292mm Long, ASN LE019022
41 1 2418Z1333D3 TUBE 19.5mm ID x 23.8mm OD x 750mm Length, Protective Plastic, ASN LE017911
40 1 YN64H01018P1 GROMMET , ASN LE017875
39 1 2418Z1333D10 TUBE 19.5mm ID x 23.8mm OD x 1700mm Length, Protective Plastic, BTW LE017701 & LE017874
38 1 2418Z1333D8 TUBE 19.5mm ID x 23.8mm OD x 1100mm Length, ASN LE017911
38 1 2418Z1333D2 TUBE 19.5mm ID x 23.8mm OD x 900mm Length, Protective Plastic, BTW LE017701 & LE017910
37 3 2432Z290 CLIP Wire Ties — 185mm Long
36 1 LE20M01041P1 SUPPORT
35 1 LE20M01019P1 SUPPORT
34 8 ZW26X06000 LOCK WASHER ID 06 x OD 07 x Th 1.5mm
33 8 ZW16X06000 WASHER ID 06 x OD 12.5 x Th 1.6mm
32 8 ZS18C06050 SCREW M06x1.0x50mm
31 1 ZS18F10080 SCREW M10x1.25x80mm
30 1 ZS18C08060 SCREW M08x1.25x60mm
29 1 ZS18F10025 SCREW M10x125x25mm
28 1 LE20M01046P1 PULLEY , ASN LE018515
28 1 2407R165 PULLEY , BTW LE017701 & LE018514
27 1 2416R275 U-BRACKET
26 1 2416R274 BRACKET
24 1 LE20M01017P1 CONNECTOR
22 2 2444Z1630 FITTING Connector — 3/8″ PT Hose, ASN LE018515
22 2 YR20M01020P1 COCK, BTW LE017701 & LE018514
21 4 ZC15X02300 CLIP
20 2 YN20M01046D2 RIGID TUBE Protective Plastic
19 2 R18T0026D30 HOSE ID 12 x OD 22 x 3200mm
18 5 ZS18C10020 SCREW M10x1.50x20mm, ASN LE017875
18 6 ZS18C10020 SCREW M10x1.50x20mm, BTW LE017701 & LE017874
17 1 YW11P01010P1 CLIP Clamp — Ø57x65mm Long, ASN LE017875
17 2 YW11P01010P1 CLIP Clamp — Ø57x65mm Long, BTW LE017701 & LE017874
16 2 2432R226D13 CLIP Clamp, Double — ID 28 x 82mm Long
15 3 2432R226D12 CLIP Clamp, Double — ID 24 x 85mm Long
14 2 ZS18C06020 SCREW M06x1.0x20mm
13 2 ZS18F10035 SCREW M10x1.25x35mm
12 1 LE20M01032P1 BRACKET
11 2 ZS18C08030 SCREW M08x1.25x30mm
10 2 ZS18C10035 SCREW M10x1.50x35mm
g 8 ZW26X10000 LOCK WASHER ID 10 x OD 18 x Th 2.5mm
8 10 ZW16X10000 WASHER ID 10 x OD 21 x Th 2.0mm, ASN LE017875
8 11 ZW16X10000 WASHER ID 10 x OD 21 x Th 2.0mm, BTW LE017701 & LE017874
7 9 ZN18C10008 NUT M10x1.50mm
6 2 2420N458D10035 SCREW CAPSCREW
5 6 ZW26X08000 WASHER Lock — ID 08 x OD 15 x Th 2.0mm, ASN LE019022
5 7 ZW26X08000 WASHER Lock — ID 08 x OD 15 x Th 2.0mm, BTW LE017701 & LE019021
4 5 ZS18C08016 SCREW M08x1.25x16mm, ASN LE019022
4 6 ZS18C08016 SCREW M08x1.25x16mm, BTW LE017701 & LE019021
3 1 LE20M01042P2 GUARD
2 1 YN20M01046D9 TUBE Protective Plastic, ASN LE017875
2 1 YN20M04046D3 TUBE, BTW LE017701 & LE017874
1 1 2418Z772D1 TUBE
AR LE20M00008F1 CONDITIONER,AIR

36 3 2418Z726D5 WASHER ID 08 x OD 15.4 x Th 2.0mm
35 3 2418Z725D5 WASHER ID 08 x OD 15.4 x Th 2.0mm
34 1 YN20M01086P3 COVER
33 2 YN20M01092D1 SCREW
32 1 2444Z3925D4
31 2 YR17M01022D1 SCREW
30 5 YN20M01097P1 FASTENER
29 1 YN20M01047P2 COVER
28 11 ZW26X08000 WASHER Lock — ID 08 x OD 15 x Th 2.0mm
27 2 YN20M01024P1 SUPPORT
26 11 ZW16X08000 WASHER ID 08 x OD 17 x Th 1.6mm
25 1 YN20M01052D1
24 4 ZW16P05000 WASHER ID 05 x OD 10 x Th 1.0mm
23 4 ZW26X05000 WASHER Lock — ID 05 x OD 09 x Th 1.3mm
22 4 ZN18C05004 NUT M05x0.8mm
21 4 ZS41C05020 SCREW M05x0.8x20mm
20 2 YN20M01055P1 GRILLE
19 2 ZW16X10000 WASHER ID 10 x OD 21 x Th 2.0mm
18 1 YN20M01061P4 COVER
17 3 2420T7826D1 SCREW
16 2 YN20M01011P1 GRILLE
15 1 YN20M01087P1 CAPSCREW
14 15 ZS18C08020 SCREW M08x1.25x20mm
13 1 YN20M01043P1 COVER
12 1 YN20M01060P1 PLATE
11 2 2420R372D102 GROMMET
10 1 YN20M01062P1 SUPPORT
9 1 YN20M01033P1 SUPPORT
8 1 YN20M01058P1 BOX
7 1 YN20M01084P1
6 1 YN20M01085P1
5 2 YN20M01054P1
4 1 YN20M01050P1 GROMMET
3 10 ZS18C10020 SCREW M10x1.50x20mm
2 2 ZS18C10025 SCREW M10x1.50x25mm
1 1 YN20M01052D2
AR LE20M00009F1 CONDITIONER INSTAL

6 1 YN20M01067P1 CONDENSER
4 1 YN20M00009F1 D PANEL SEE FIG. 01-053
3 1 LE91V00002F1 COMPRESSOR SEE FIG. 01-052
2 1 LE96V00002F2 DRIER ASSY, AIR, SEE FIG. 01-051, ASN LE018959
2 1 LE96V00002F1 DRIER ASSY, AIR, SEE FIG. 01-051, BTW LE017701 & LE018958
1 1 IE20M00007F2 CONDITIONER ASSY, AIR, SEE FIG. 01-050, ASN LE018959
1 1 LE20M00007F1 CONDITIONER ASSY,AIR, SEE FIG. 01-050, BTW LE017701 & LE018958
AR LE20M00006F1 CONDITIONER ASSY, AIR
6 1 YN20M00016F1 CONDITIONER, AIR, SEE FIG. 01-055, ASN LE018959
5 2 24100U1176S5 CLAMP (FOR DRAIN-HOSE )
4 1 LE20H01036P1 HOSE, BTW LE017701 & LE018958
3 1 24100R228S18 FLEXIBLE HOSE
2 1 24100R228S17 HOSE
1 1 YN20M00010P1 CONDITIONER. AIR (AIR-CON UNIT), SEE FIG. 01-054-01 &01-054-02 &01-054-03, BTW LE017701 & LE018958
AR LE20M00007F2 CONDITIONER ASSY.AIR, ASN LE018959
AR LE20M00007F1 CONDITIONER ASSY.AIR, BTW LE017701 & LE018958

8 1 LE20M01036P1 HOSE, ASN LE018959
7 2 YN20M01078P1 SCREW
6 2 YN20M01079P1 SEMS-BOLT
5 1 YN20M01068P1 FILTER
4 1 YN20M01069P1 BRACKET
3 1 LE20M01039P1 HOSE
2 1 LE20M01038P1 HOSE
1 1 LE20M01037P1 HOSE
AR LE96V00002F2 DRIER ASSY. AIR, ASN LE018959
AR LE96V00002F1 DRIER ASSY.AIR, BTW LE017701 & LE018958

2-17 3 2487U41S001 FUSE
2 1 YN20M01093F1 WIRE HARNESS
1 1 YN20M01088P1 PANEL
AR YN20M00009F1 D PANEL

79 3 YN20M00010S079 SCREW. TAPPING
78 4 24100UU88S49 SCREW. TAPPING
76 3 YN20M00010S076 SCREW, TAPPING
75 8 24100U1188S54 MACHINE SCREW
73 8 2480U122S16 MACHINE SCREW
71 2 24100U803S22 CLAMP
69 1 24100U759S31 SENSOR.HOLDER
67 2 24100U1188S11 BAND
66 1 24100U1188S10 VALVE, HOLDER
64 2 24100U1188S8 SPACER
63 2 24100U1188S7 NUT
62 1 YN20M00010S062 SHAFT
61 1 24100U1188S46 BASE
60 1 24100U1188S45 DAMPER DAMPER
59 1 24100U1188S42 DAMPER
58 1 24100U1188S38 SHAFT
57 1 24100U1188S36 ROD
56 1 24100U1188S35 ROD
55 1 YN20M00010S055 LINK
54 1 24100U1188S33 ROD, VALVE
53 1 24100U1188S32 SPRING
52 1 YN20M00010S052 WIRE HARNESS
51 1 24100U1188S5 THERMOSTART
50 1 YN20M00010S050 VALVE
49 1 YR20M00008S019 VALVE , ASN LE018103
49 1 YN20M00010S049 VALVE , BTW LE01701 & LE018102
47 1 24100U1188S29 ACTUATOR
46 1 YN20M00010S046 CLAMP
45 1 24100U1188S27 CLAMP
44 2 YN20M00010S044 CLAMP CLAMP
43 1 24100U1188S26 HOSE
42 1 YN20M00010S042 PIPE
41 1 24100U1188S24 BRACKET
40 1 24100U1188S23 BRACKET
39 1 24100U1188S2 KEEPER
38 1 YN20M00010S038 CLAMP
37 1 24100U1188S21 PACKING
36 1 YN20M00010S036 PACKING
35 1 24100U1188S1 INSULATOR
34 1 YN20M00010S034 HOSE
33 1 YN20M00010S033 LOW DUCT
32 1 YN20M00010S032 UPP DUCT
31 1 YN20M00010S031 CASE
30 1 YN20M00010S030 CASE
29 1 YN20M00010S029 CORE HEATER
28 1 YN20M00016S028 EVAPORATOR , ASN LE018103
28 1 YN20M00010S028 EVAPORATOR , BTW LE01701 & LE018102
27 15 24100U1176S28 SCREW
26 4 YN20M00010S026 CAPSCREW
25 17 24100U1188S51 SCREW
24 4 24100U1189S20 SCREW
23 2 2480U170S49 SCREW MACHINE SCREW
22 3 YN20M00010S022 SEMS-BOLT
21 2 24100U1188S48 CLAMP
20 3 24100U759S33 CLAMP
19 3 24100UU88S12 HOLDER ASSY, ROD
18 5 24100U1188S9 CLAMP
17 9 24100U759S28 CLAMP
16 3 YN20M00010S016 WASHER
15 4 24100U759S26 RELAY
14 1 YN20M00010S014 DAMPER
13 1 YN20H00010S013 REVER
12 1 24100U1189S16 ROD
11-1 5 YN20M01093S001 CLIP
11 1 YN20M01175F1 WIRE HARNESS
10 1 YN20M00010S010 RESISTOR
9 2 24100U1188S28 ACTUATOR
8 1 YN20M00010S008 MOTOR
7 1 YN20M00010S007 HOSE
6 2 24100U1189S11 HOLDER
5 1 YN20M00010S005 CAB FILTER
4 1 YN20M00010S004 CAB FILTER
3 1 YN20M00010S003 JOINT. SUPPORT
2 1 YN20M00010S002 CASE, FAN (R.H)
1 1 YN20M00010S001 CASE. FAN (L.H)

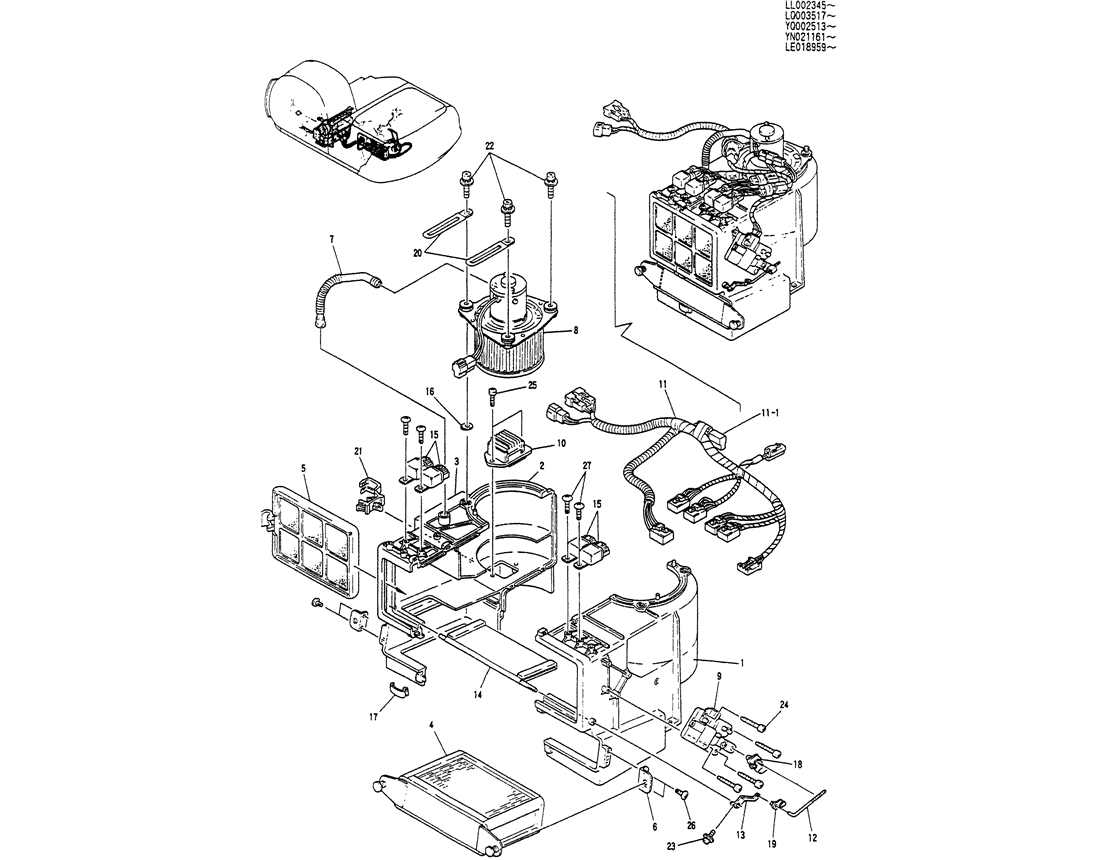

AR YN20M00010F1 CONDITIONER, AIR

79 3 YN20M00010S079 SCREW,TAPPING
78 4 YN20M00016S078 CLIP
76 3 YN20M00010S076 SCREW,TAPPING
75 8 24100U1188S54 MACHINE SCREW
73 8 2480U122S16 SCREW
71 2 24100U803S22 CALMP
69 1 24100U759S31 HOLDER
67 2 24100U1188S11 BAND
66 1 24100U1188S10 STAY
64 2 24100U1188S8 SPACER
63 2 24100U1188S7 NUT
62 1 YN20M00010S062 SHAFT
61 1 24100U1188S46 BASE
60 1 24100U1188S45 DAMPER DAMPER
59 1 24100U1188S42 DAMPER
58 1 24100U1188S38 SHAFT
57 1 24100U1188S36 ROD
56 1 24100U1188S35 ROD
55 1 YN20M00016S055 LINKE ASSY
54 1 24100U1188S33 ROD
53 1 24100U1188S32 SPRING
52 1 YN20M00010S052 WIRE HARNESS
51 1 24100U1188S5 THERMOSTART
50 1 YN20M00010S050 VALVE
49 1 YR20M00008S019 VALVE
47 1 24100U1188S29 ACTUATOR
46 1 YN20M00010S046 CLAMP
45 1 24100U1188S27 CLAMP
44 2 YN20M00016S044 CLAMP CLAMP
43 1 24100U1188S26 HOSE
42 1 YN20M00010S042 PIPE
41 1 YN20M00016S041 BRACKET
40 1 YN20M00016S040 BRACKET
39 1 24100U1188S2 KEEPER
38 1 YN20M00016S038 HOSE CLIP CLAMP
37 1 24100U1188S21
36 1 YN20M00010S036 PACKING
35 1 24100U1188S1 INSULATOR
34 1 YN20M00016S034 FLEXIBLE HOSE HOSE
33 1 YN20M00016S033 LOW DUCT
32 1 YN20M00016S032 UPP DUCT
31 1 YN20M00010S031 CASE
30 1 YN20M00010S030 CASE
29 1 YN20M00010S029 CORE
28 1 YN20M00016S028 EVAPORATOR
27 15 24100U1176S28 SCREW
26 4 24100U1167S49 CAPSCREW
25 17 24100U1188S51 SCREW
24 4 24100U1189S20 SCREW
23 2 2480U170S49 SCREW MACHINE SCREW
22 3 YN20M00016S022 SEMS-BOLT
21 2 24100U1188S48 CLAMP
20 3 24100U759S33 CLAMP
19 3 24100U1188S12 HOLDER HOLDER ASSY, ROD
18 5 24100U1188S9 CLAMP
17 9 24100U759S28 CLAMP
16 3 YN20M00010S016 WASHER
15 4 YN20M00016S015 RELAY
14 1 YN20M00010S014 DAMPER
13 1 YN20M00016S013 LEVER
12 1 24100U1189S16 ROD
11-1 1 YN20M01093S001 CLIP
11 1 YN20M01162F1 WIRE HARNESS ASSY
10 1 YN20M00010S010 RESISTOR
9 2 24100U1188S28 ACTUATOR
8 1 YN20M00010S008 MOTOR
7 1 YN20M00010S007 HOSE
6 2 YK20M00016S006 HOLDER
5 1 YN20M00010S005 CAB FILTER INNER
4 1 YN20M00010S004 CAB FILTER
3 1 YN20M00010S002 JOINT,SUPPORT
2 1 YN20M00010S002 CASE, FAN (R.H)
1 1 YN20M00010S001 CASE, FAN (L.H)
AR YN20M00016F1 CONDITIONER. AIR
