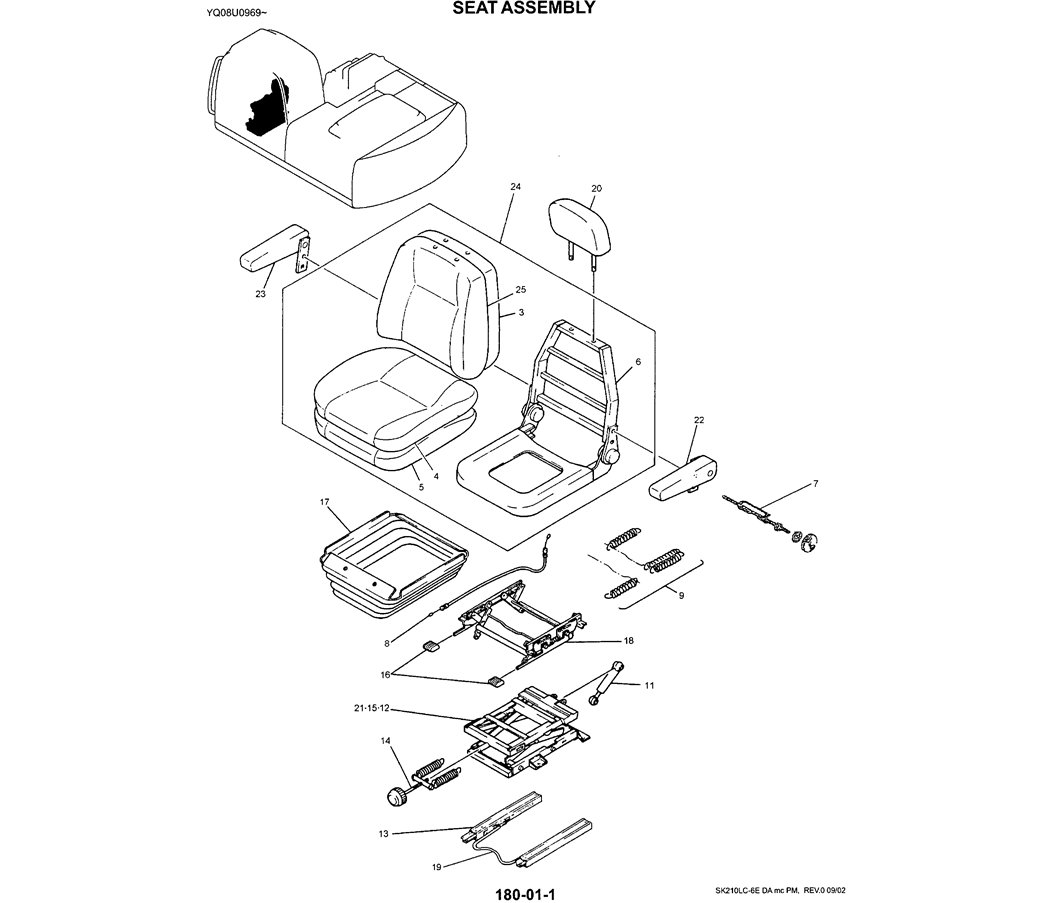

01-045 SEAT ASSEMBLY

01-045 SEAT ASSEMBLY-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals

01-045 SEAT ASSEMBLY-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals
01-045 SEAT ASSEMBLY-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals

25 1 LC25M00001S025 DRIVER’S SEAT COVER
24 1 LC25M00001S024 SEAT
23 1 YN25M00015S011 ARMREST SUPPORT
22 1 YN25M00015S010 ARMREST SUPPORT
21 1 2448U167S18 KIT
20 1 LC25M00001S020 SUPPORT
19 1 LC25M00005S018 HANDLE
17 1 LC25M00001S017 COVER
15 1 YN25M00008S014 HANDLE ADJUSTER
15 1 2448U167S16 STOP
14 1 2448U167S12 ADJUSTER
13 1 2448U168S12 RAIL ASSY.
12 1 2448U168S11 SPRING
11 1 2448U167S15 DAMPER
9 1 LC25M00001S009 SPRING KIT
8 1 YN25MU0001S007 CABLE
7 1 LC25M00001S007 ADJUSTER
6 1 LC25M00001S006 FRAME
5 1 LC25M00001S005 SEAT ACCESSORY FOAM, SEAT
4 1 YN25M00015S004 SEAT COVER
3 1 LC25M00001S003 SET OF PARTS PAD KIT
LC25M00001F2 SEAT ACCESSORY
18 1 LC25M00001S018 ADJUSTER
