01-035(02) REMOTE CONTROL LINES (TRAVEL)

01-035(02) REMOTE CONTROL LINES (TRAVEL)-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals

C14-1 1 ZD12P01400 O-RING ID 13.80 ± 0.19 x OD 18mm
C14 1 ZH22X04006 HYD CONNECTOR (Incls. O-Ring 237-6006) (PF1/4-PF3/8)
C9-1 1 ZD12P01400 O-RING ID 13.80 ± 0.19 x OD 18mm
C9 1 ZH32X06000 HYD CONNECTOR Elbow, 90° — (Incls. O-Ring ZD12P01400) Alternate O-Ring 237-6006
C8-1 1 ZD12P01400 O-RING ID 13.80 ± 0.19 x OD 18mm
C8 1 2444T2505 HYD CONNECTOR 1/4″ PF – 3/8″ PF x 35mm Long (Incls. O-Ring ZD12P01400)
C6-1 1 ZD12P01400 O-RING ID 13.80 ± 0.19 x OD 18mm
C6 2 ZH22X06000 HYD CONNECTOR (Incls. O-Ring ZD12P01400) (PF3/8)
C5-1 1 ZD12P01400 O-RING ID 13.80 ± 0.19 x OD 18mm
C5 1 2444Z2359 TEE 3/8″ PT (Incls. O-Ring ZD12P01400)
C4-1 1 ZD12P01100 O-RING ID 10.80 ± 0.18 x OD 15mm
C4 1 2444Z2336 HYD CONNECTOR Tee — 1/4″x3/8″x3/8″PF (Incls. O-Ring ZD12P01100)
C3 2 ZW16H08000 WASHER ID 08 x OD 18 x Th 3.2mm
C2 2 ZS18C08040 SCREW M08x1.25x40mm
C1 1 YR64H01009P1 BLOCK BLOCK
YN64H00141F1 CONTROL CONTROL LINES, BLOCK
B15 8 ZW16X08000 WASHER ID 08 x OD 17 x Th 1.6mm
B14 8 ZS18C08040 SCREW M08x1.25x40mm
B13 4 YN68H01035P1 CLAMP CLAMP
B12 2 2420R537D350 HOSE ASSY. PF 3/8, 3500mm Long (137-51/64 in)
B11 2 2420R537D300 HOSE 3000.00 mm, PF 3/8
B10 1 2444R1119D100 HOSE 3/8″ PF, 1000mm Long (39-3/8 in)
B9 1 2420R349D090 HOSE 900.00 mm, PF1/4, 900mm Long (35-7/16 in)
B8-2 1 ZD12P01100 O-RING ID 10.80 ± 0.18 x OD 15mm
B8 2 YX52S00010P1 SENSOR Pressure (PF 1/4)
B7 4 ZW16K10000 WASHER ID 10.5 x OD 18 x Th 2.0mm
B6 4 ZS28C10025 SCREW M10x1.50x25mm
B5-1 1 ZD12P01400 O-RING ID 13.80 ± 0.19 x OD 18mm
B5 4 ZH32X06000 HYD CONNECTOR Elbow, 90° — (Incls. O-Ring ZD12P01400) Alternate O-Ring 237-6006
B4-1 1 ZD12P01400 O-RING ID 13.80 ± 0.19 x OD 18mm
B4 1 ZH22X06000 HYD CONNECTOR (Incls. O-Ring ZD12P01400) (PF3/8)
B3 4 PY01P01043D3 CLIP Wire Ties — 188mm Long
B2-1 1 ZD12P01100 O-RING ID 10.80 ± 0.18 x OD 15mm
B2 1 HH25X04004G2 HYD CONNECTOR PF 1/4, (Incls. O-Ring ZD12P01100)
B1 1 YX30V00004F1 VALVE VALVE, PILOT, Remarks: See CPM
YN62H00019F1 CONTROL LINES, PROPEL
A29-1 1 ZD12P01100 O-RING ID 10.80 ± 0.18 x OD 15mm
A29 1 2444T2524D2 HYD CONNECTOR 1/4″ PF x 46mm Long (Incls. O-Ring ZD12P01100)
A28 1 2444R1120D035 HOSE PF 1/4, 350mm Long (13-49/64 in)
A27 1 2444R1119D040 HOSE 400.00 mm, PF 3/8
A26 1 2444R1120D045 HOSE PF 1/4, 450mm Long (17-23/32 in)
A25 2 2420R349D048 HOSE ASSY. PF 1/4, 480mm Long (18-57/64 in)
A24 1 YN35V00040F1 VALVE VALVE ASSY, SOLENOID, Remarks: See CPM
A23 1 YN50V00016F1 FILTER FILTER, INLINE
A22-1 1 ZD12P01100 O-RING ID 10.80 ± 0.18 x OD 15mm
A22 2 ZH22X04000 HYD CONNECTOR 1/4″PFx36mm Long (Incls. O-Ring ZD12P01100)
A21-1 1 ZD12P01100 O-RING ID 10.80 ± 0.18 x OD 15mm
A21 1 HH35X04004G3 ELBOW 90° — 1/4″ PF (Incls. O-Ring ZD12P01100)
A20-1 1 ZD12P01100 O-RING ID 10.80 ± 0.18 x OD 15mm
A20 5 ZH32X04000 HYD CONNECTOR Elbow, 90° — PF 1/4, (Incls. O-Ring 237-6004)
A19-1 1 ZD12P01400 O-RING ID 13.80 ± 0.19 x OD 18mm
A19 3 ZH32X04006 ELBOW 90° — 1/4″x3/8″PF (Incls. O-Ring 237-6006 Alternate ZD12P01400)
A18 2 ZW16H08000 WASHER ID 08 x OD 18 x Th 3.2mm
A17 2 ZW16H06000 WASHER ID 06 x OD 15 x Th 3.2mm
A16 2 ZS18C06060 SCREW M06x1.0x60mm
A15 2 ZS18C08020 SCREW M08x1.25x20mm
A14-1 1 ZD12P01400 O-RING ID 13.80 ± 0.19 x OD 18mm
A14 4 HH55Q06006G1 TEE 3/8″ PF (Incls. O-Ring ZD12P01400)
A13-1 1 ZD12P01400 O-RING ID 13.80 ± 0.19 x OD 18mm
A13 1 ZH22X04006 HYD CONNECTOR (Incls. O-Ring 237-6006) (PF1/4-PF3/8)
A12-1 1 ZD12P02400 O-RING ID 23.70 ± 0.24 x OD 30mm
A12 1 ZH32X12000 HYD CONNECTOR Elbow, 90° — 3/4 PF (Incls. O-Ring 237-6012)
A11-1 1 ZD12P01100 O-RING ID 10.80 ± 0.18 x OD 15mm
A11 1 2444Z2336 HYD CONNECTOR Tee — 1/4″x3/8″x3/8″PF (Incls. O-Ring ZD12P01100)
A10-1 1 ZD12P01100 O-RING ID 10.80 ± 0.18 x OD 15mm
A10 2 HH25R04004G5 HYD CONNECTOR w/Filter (PF1/4)(Incls. O-Ring ZD12P01100)
A9-1 1 ZD12P01100 O-RING ID 10.80 ± 0.18 x OD 15mm
A9 1 2444Z2525 HYD CONNECTOR 1/4″PFx35mm Long (Incls. O-Ring ZD12P01100)
A8-1 1 ZD12P02400 O-RING ID 23.70 ± 0.24 x OD 30mm
A8 1 ZH42X12000 ELBOW 45° — 3/4″ PF (Incls. O-Ring 237-6012)
A7-1 1 ZD12P01400 O-RING ID 13.80 ± 0.19 x OD 18mm
A6-1 1 ZD12P01400 O-RING ID 13.80 ± 0.19 x OD 18mm
A6 4 ZH22X06000 HYD CONNECTOR (Incls. O-Ring ZD12P01400) (PF3/8)
A5 1 ZX22M12045 HOSE 450mm Long (17-23/32 in)
A4 1 2420R349D068 HOSE PF 1/4, 680mm Long (26-49/64 in)
A3 1 2420R349D045 HOSE PF 1/4, 450mm Long (17-23/32 in)
A2 1 2420R537D060 HOSE ASSY. HOSE (PF3/8; L=600mm)
A1 1 2420R349D036 HOSE HOSE (PF1/4; L=360mm)
YN06H00068F1 CONTROL LINES, PUMP

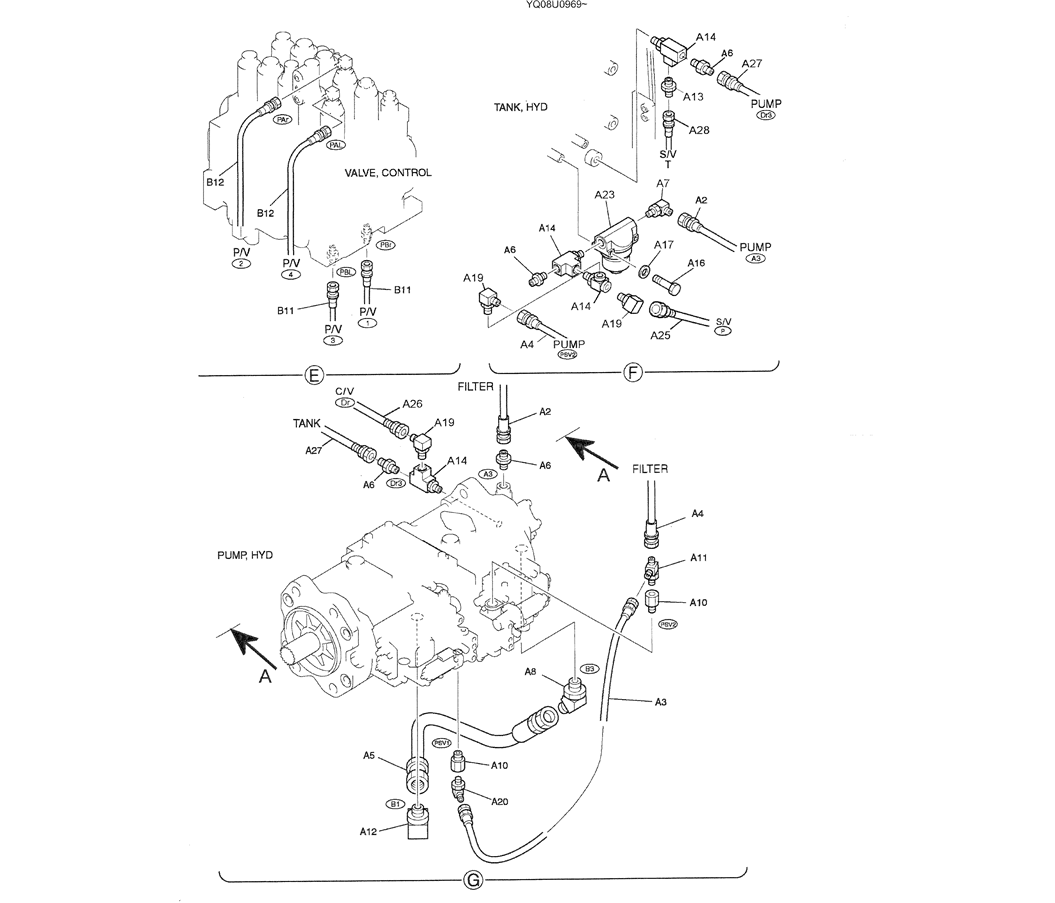

REMOTE CONTROL LINES (Travel/Pump)
A7 1 ZH32X06000 HYD CONNECTOR Elbow, 90° — (Incls. O-Ring ZD12P01400) Alternate O-Ring 237-6006
