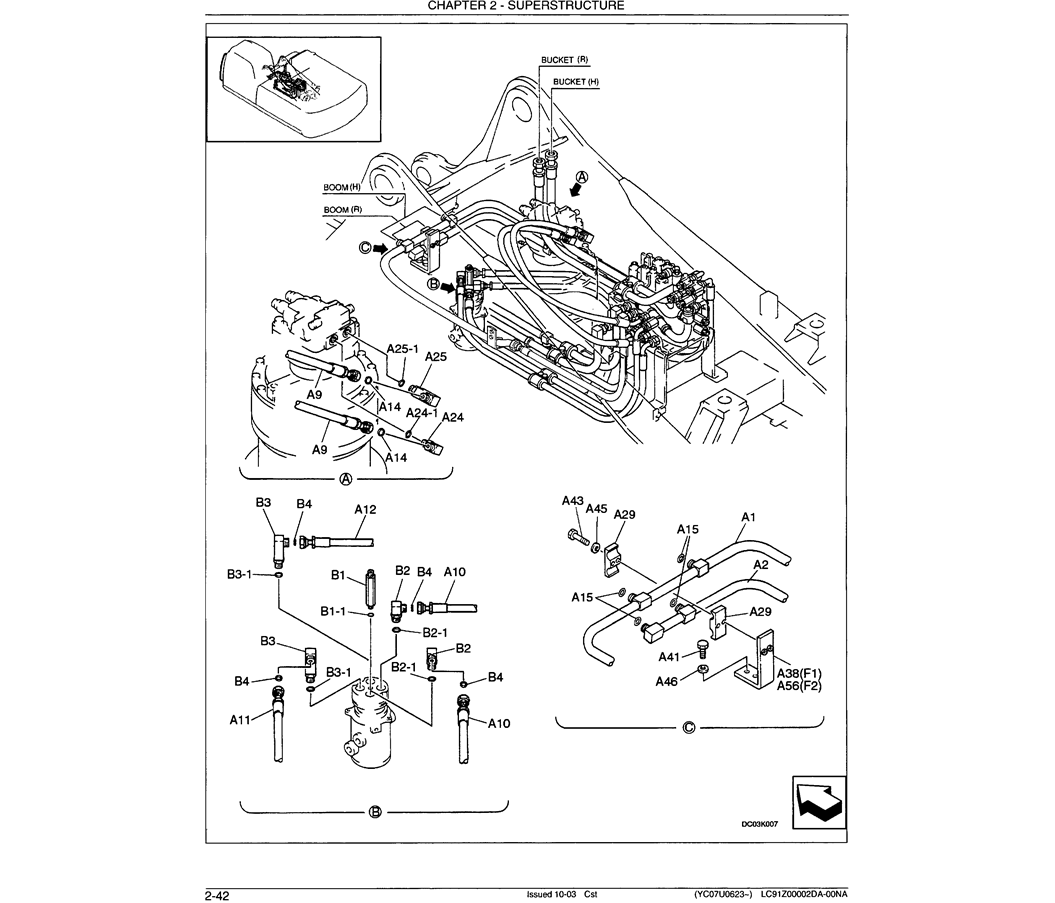

01-025 UPPER HYDRAULIC LINES – MAIN (HYDRAULIC HOSES AND TUBES AT VALVE AND SWING MOTOR)

01-025 UPPER HYDRAULIC LINES – MAIN (HYDRAULIC HOSES AND TUBES
AT VALVE AND SWING MOTOR)-SK330LC-6E SK330-6E SK350LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals

01-025 UPPER HYDRAULIC LINES - MAIN (HYDRAULIC HOSES AND TUBES  AT VALVE AND SWING MOTOR)-SK330LC-6E SK330-6E SK350LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals
01-025 UPPER HYDRAULIC LINES – MAIN (HYDRAULIC HOSES AND TUBES
AT VALVE AND SWING MOTOR)-SK330LC-6E SK330-6E SK350LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals

B4 4 ZD12A01800 O-RING ID 18.77 ± 0.12 x OD 22.33mm
B3-1 1 ZD12P02900 O-RING ID 28.70 ± 0.29 x OD 35mm
B3 2 YN03H01174P1 ELBOW PF1
B2-1 1 ZD12P02900 O-RING ID 28.70 ± 0.29 x OD 35mm
B2 2 YN03H01173P1 ELBOW PF1
B1-1 1 ZD12P01800 O-RING ID 17.80 ± 0.21 x OD 22mm
B1 1 HH25X12008G1 HYD CONNECTOR PF3/4-PF1/2
AR LC19H00001F1 HYDRAULIC LINES, SWIVEL
A56 1 LC03H01069P1 SUPPORT SUPPORT (F2 ONLY)
A46 4 2418T10357 WASHER ID 13 x OD 30 x Th 3.2mm
A45 9 ZW16H12000 WASHER ID 13 x OD 26 x Th 3.2mm
A43 3 ZS18C12085 SCREW M12x1.75x85mm
A41 6 ZS18C12030 SCREW M12x1.75x30mm
A38 1 LC03H01044P1 SUPPORT (F1 ONLY)
A29 2 LC03H01043P1 CLAMP Double Block — 114x50x24mm
A25-1 1 ZD12P02400 O-RING ID 23.70 ± 0.24 x OD 30mm
A24-1 1 ZD12P02400 O-RING ID 23.70 ± 0.24 x OD 30mm
A24 1 ZG33F12012 ELBOW 90° — 1-3/16″ -12UN x 3/4″ PF (Incls. O-Ring ZD12P02400)
A15 14 ZD12A02100 O-RING ID 23.52 ± 0.15 x OD 27.08mm
A14 12 ZD12A01800 O-RING ID 18.77 ± 0.12 x OD 22.33mm
A12 1 ZX30H12190 FLEXIBLE HOSE TRAVEL
A11 1 ZX30H12185 HOSE TRAVEL
A10 2 ZX30H12170 HOSE TRAVEL
A9 2 ZX49H12100 HOSE SWING
A2 1 LC03H01059P1 RIGID TUBE BOOM (R)
A1 1 LC03H01080P1 RIGID TUBE BOOM (H)
F2 AR LC03H00014F2 HYDRAULIC LINES, UPPER – BOOM AND ARM SAFETY
F1 AR LC03H00014F1 HYDRAULIC LINES, UPPER – STANDARD
A25 1 YN03H01172P1 ELBOW 90° — 1-3/16″-12UN x 3/4 PF x 116mm Long (Incls. O-Ring ZD12P02400)
