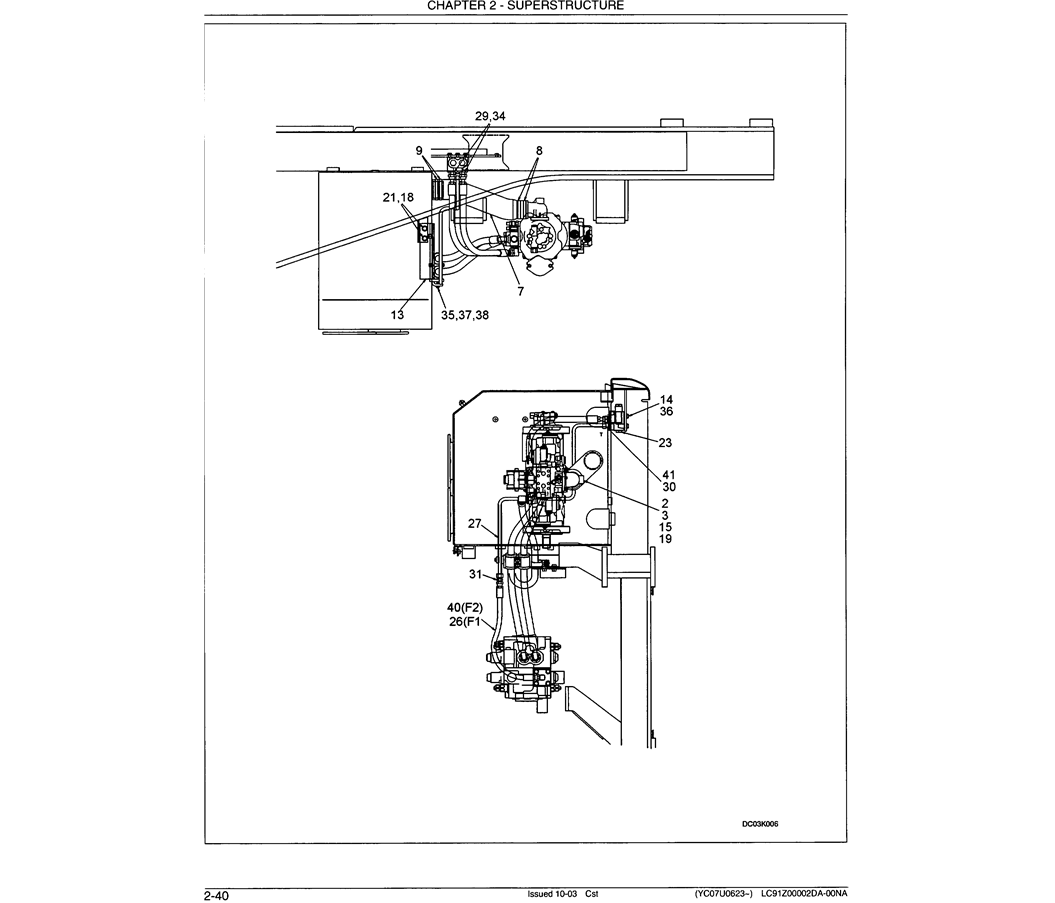

01-024 UPPER HYDRAULIC LINES (SUCTION, DELIVERY [PUMP-TO-HYDRAULIC VALVE])

01-024 UPPER HYDRAULIC LINES (SUCTION, DELIVERY
[PUMP-TO-HYDRAULIC VALVE])-SK330LC-6E SK330-6E SK350LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals

01-024 UPPER HYDRAULIC LINES (SUCTION, DELIVERY  [PUMP-TO-HYDRAULIC VALVE])-SK330LC-6E SK330-6E SK350LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals
01-024 UPPER HYDRAULIC LINES (SUCTION, DELIVERY
[PUMP-TO-HYDRAULIC VALVE])-SK330LC-6E SK330-6E SK350LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals
41 1 ZD12P01800 O-RING ID 17.80 ± 0.21 x OD 22mm
40 1 ZX22M08056 (F2 ONLY)
38 1 ZW16H08000 WASHER ID 08 x OD 18 x Th 3.2mm
37 1 ZS18C08040 SCREW M08x1.25x40mm
36 3 ZS18C10025 SCREW M10x1.50x25mm
35 1 ZC26X15009 CLAMP
34 4 ZD12A01600 O-RING ID 15.60 ± 0.12 x OD 19.16mm
31 1 2444R721D10 HYD CONNECTOR PF 1/2
30 1 ZA23F15008 HYD CONNECTOR PF 1/2
29 2 ZG23F10008 HYD CONNECTOR 1-14UNS x 1/2″ PF x 43.5mm (5/8×1/2) (Incls. O-Ring 237-6008)
27 1 LC30H01017P1 TUBE
26 1 ZX22M08062 RECEIVER-DRYER Hose — PF 1/2, 620mm Long (24-13/32 in), F1 Only
23 1 LB30V00004F1 CONTROL VALVE
21 2 ZW16H12000 WASHER ID 13 x OD 26 x Th 3.2mm
19 4 ZW26K12000 LOCK WASHER ID 12 x OD 17.8 x Th 2.5mm
18 2 ZS18C12030 SCREW M12x1.75x30mm
14 5 ZW16H10000 WASHER ID 11 x OD 24 x Th 3.2mm
13 1 LC30H01018P1 SUPPORT
9 2 ZC16X10000 CLIP Clamp, Hose — Min 87 x Max 113mm
8 2 ZC16X09100 CLIP Clamp, Hose — Min 80 x Max 101mm
7 1 LC30H01009P1 HOSE
3 1 ZD11G07500 O-RING ID 74.40 ± 0.65 x OD 80mm
2 1 YN30H01010P1 ELBOW SUCTION
F2 AR LC30H00016F2 HYDRAULIC LINES, PUMP – ROTARY CIRCUIT
F1 AR LC30H00016F1 HYDRAULIC LINES, PUMP – STANDARD
15 4 ZS28C12030 CAP Screw — M12x1.75x30mm
