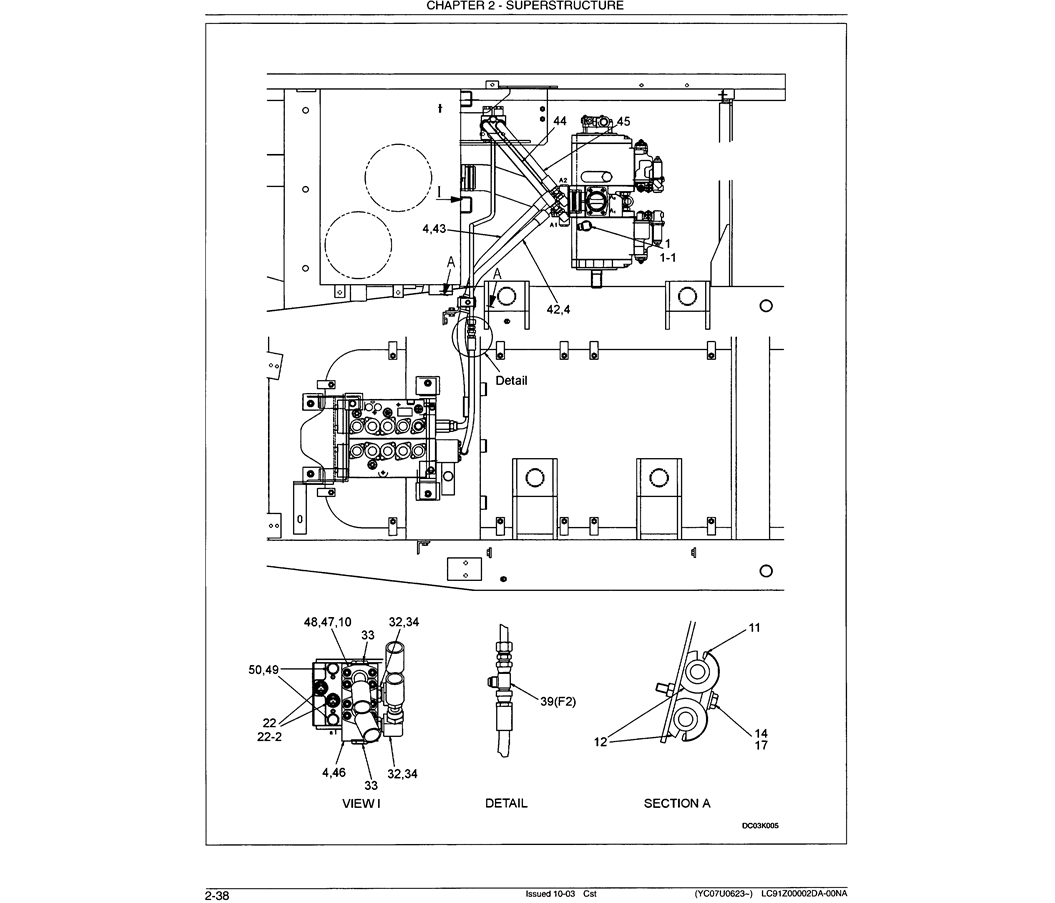

01-023 UPPER HYDRAULIC LINES (SUCTION, DELIVERY [PUMP-TO-HYDRAULIC VALVE])
01-023 UPPER HYDRAULIC LINES (SUCTION, DELIVERY
[PUMP-TO-HYDRAULIC VALVE])-SK330LC-6E SK330-6E SK350LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals
49 2 2444T2524 HYD CONNECTOR 1/4″ PF x 50mm Long (Incls. O-Ring ZD12P01100)
48 8 ZW26K10000 WASHER Lock — ID 10 x OD 15.7 x Th 2.5mm
47 8 ZS28C10075 SCREW M10x1.50x75mm
46 1 YN30H01068P1 FLANGE
45 1 ZX20H10066 HOSE 660mm Long (25-63/64 in)
44 1 ZX20H10072 HOSE 720mm Long (28-11/32 in)
43 1 YN30H01087DA HOSE
42 1 YN30H01087D9 HOSE
39 1 2444R597D3 TEE 1/2″ PF, (F2 Only)
34 4 ZD12A01600 O-RING ID 15.60 ± 0.12 x OD 19.16mm, QTY-F1: 4, QTY-F2: 4
33 2 ZE72X08000 PLUG 1/2″ PF, (Incls. O-Ring ZD12P01800)
32 2 ZG33F10008 ELBOW 90° — 1″ -14UNS x 1/2″ PF (Incls. O-Ring ZD12P01800)
22-3 1 YT42H01128P1 ELBOW (Added with new part # press switch)
22-2 1 ZD12P01400 O-RING ID 13.80 ± 0.19 x OD 18mm
22-1 1 LS30H01024P1 HYD CONNECTOR (Added with new part # press switch)
22-0 1 YY52S00033F1 SENSOR Kit Includes Ref 22 – 22-3 (Refer to SB S030-41-K003)
22 2 LS52S00015P1 SENSOR (New part #) (Added by SB S030-41-K003)
22 2 LC52S00012P1 SENSOR Pressure (High Pressure) (replaced by LS52S00015P1), (PF3/8)
17 2 ZS18C10075 SCREW M10x1.50x75mm
14 5 ZW16H10000 WASHER ID 11 x OD 24 x Th 3.2mm
12 2 YN03H01432P1 BUSHING Split — ID 28 x OD 38 x 70mm Long
11 1 YN03H01427P1 CLAMP 122.5x50x48mm
4 2 ZD12P02600 O-RING ID 25.70 ± 0.26 x OD 32mm
1-1 1 ZD12P02400 O-RING ID 23.70 ± 0.24 x OD 30mm
1 1 ZH32X12000 HYD CONNECTOR Elbow, 90° — 3/4 PF (Incls. O-Ring 237-6012)
0 AR LC10V00005F4 PUMP See Figure 07-009
F2 AR LC30H00016F2 HYDRAULIC LINES PUMP – ROTARY CIRCUIT
F1 AR LC30H00016F1 HYDRAULIC LINES PUMP – STANDARD
10 4 ZE13X12000 CLAMP Half — (Incls. Capscrew & Lockwasher)
