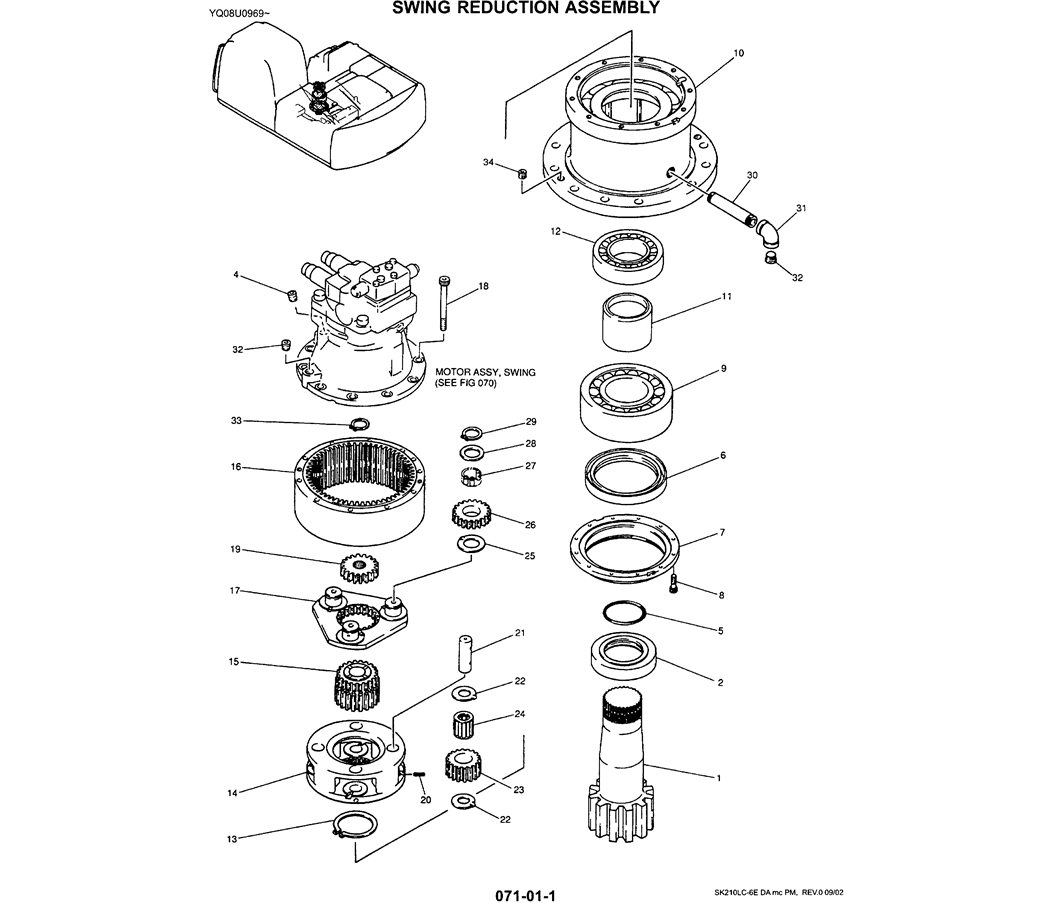

01-018 SWING REDUCTION ASSEMBLY

01-018 SWING REDUCTION ASSEMBLY-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals

01-018 SWING REDUCTION ASSEMBLY-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals
01-018 SWING REDUCTION ASSEMBLY-SK200-6E SK210LC-6E SK200-6ES SK200LC-6E Kobelco Excavator Parts Number Electronic Catalog EPC Manuals

34 2 ZS83C20020 SCREW Set — M20x2.50x20mm
33 1 2418R2D22 RING RING, SNAP
32 2 ZE82T12000 PLUG 3/4″ PT
31 1 ZG31U12000 ELBOW ELBOW, 90
30 1 2420T6698D2 PIPE PIPE, Remarks: (L=180mm)
29 3 2418R2D25 RING RING, SNAP
28 3 YN32W01028P1 THRUST WASHER WASHER, THRUST
27 102 YN32W01022P1 ROLLER ROLLER
26 3 YN32W01002P1 PINION PINION
25 3 YN32W01026P1 THRUST WASHER WASHER, THRUST
24 4 YN32W01021P1 BEARING BEARING, NEEDLE
23 4 YN32W01008P1 PINION PINION
22 8 YN32W01027P1 THRUST WASHER WASHER, THRUST
21 4 YN32W01001P1 SHAFT SHAFT
20 4 ZP26D08025 PIN Roll — OD 08 x 25mm Long
19 1 YN32W01007P1 SUN GEAR GEAR, SUN
18 10 ZS23C14130 SCREW M14x2.0x130mm
17 1 YN32W01019F1 SPIDER ASSY. SPIDER ASSY
16 1 YN32W01012P1 RING GEAR GEAR, RING
15 1 YN32W01006P1 SUN GEAR GEAR, SUN
14 1 YN32W01011P1 SPIDER SPIDER
13 1 ZR16X09000 RING Retaining — ID 84.50 x OD 108 x 3.0mm
12 1 YN32W01030P1 SPHERICAL BEARING BEARING, SPHERICAL
11 1 YN32W01015P1 SPACER SPACER
10 1 YN32W01033P1 HOUSING HOUSING
9 1 YN32W01029P1 SPHERICAL BEARING BEARING, SPHERICAL
8 12 ZS23C08025 SCREW M08x1.25x25mm
7 1 YN32W01005P1 RETAINER RETAINER
6 1 YN32W01034P1 OIL SEAL OIL SEAL
5 1 ZD11G10000 O-RING O-RING
4 1 ZE82T08000 PLUG 1/2″ PT
2 1 YN32W01004P1 SLEEVE SLEEVE
YN32W00004F1C MOTO-REDUCTION GEAR Return Number, For N.A. Only
1 YN32W00004F1R MOTO-REDUCTION GEAR SK210LC-6E – DYNAMIC ACERA, ASN YQ08U0969, N.A. Only
YN32W00004F1 MOTO-REDUCTION GEAR SWING REDUCTION ASSY
1 1 YN32W01003P1 PINION SHAFT SHAFT, PINION
