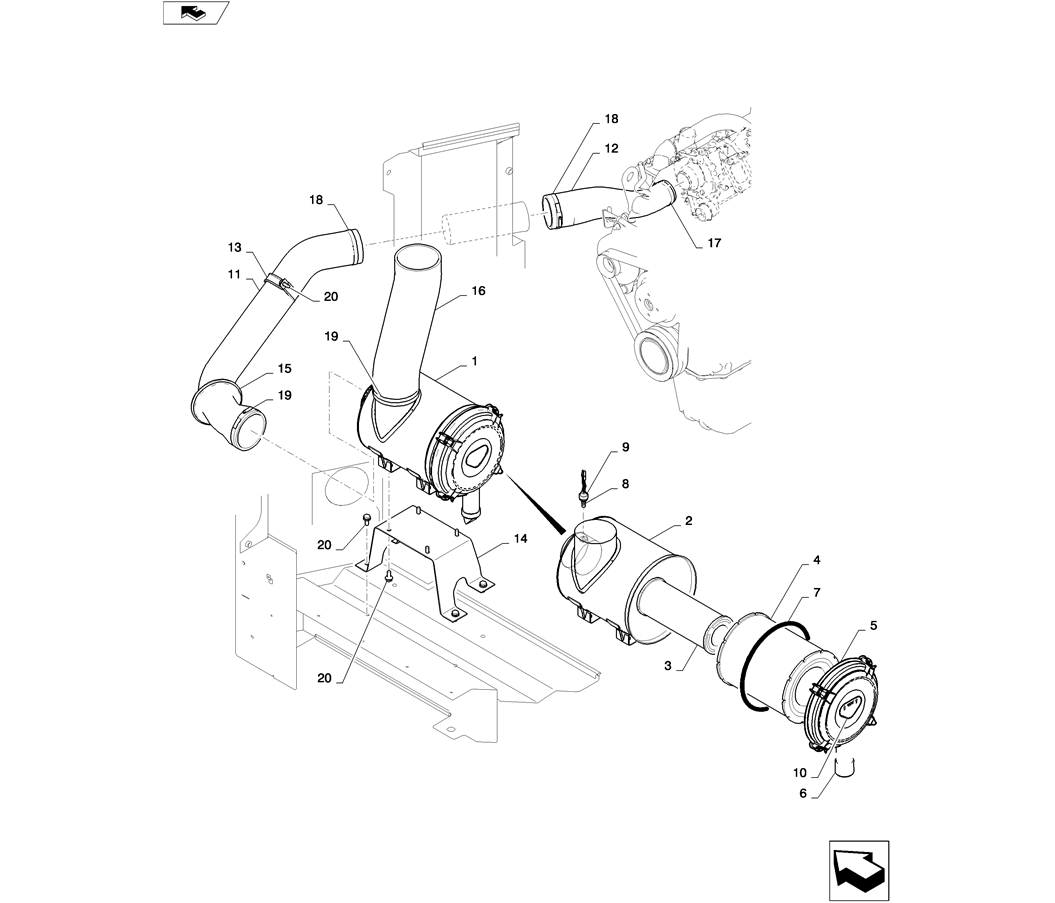

01-010(00)AIR CLEANER ASSY

01-010(00)AIR CLEANER ASSY-SK235SR-2 SK235SRLC-2 SK235SR Kobelco Excavator Parts Number Electronic Catalog EPC Manuals

01-010(00)AIR CLEANER ASSY-SK235SR-2 SK235SRLC-2 SK235SR Kobelco Excavator Parts Number Electronic Catalog EPC Manuals
01-010(00)AIR CLEANER ASSY-SK235SR-2 SK235SRLC-2 SK235SR Kobelco Excavator Parts Number Electronic Catalog EPC Manuals

20 9 ZM73C10025 BOLT Sems
19 2 ZC16X12200 CLIP
18 2 ZC16X10000 CLIP
17 1 ZC16X07000 CLIP
16 1 YB11P01045P1 HOSE Air
15 1 YB11P01044P1 GROMMET
14 1 YB11P01039P1 BRACKET
13 1 YB11P01043P1 CLIP
12 1 YB11P01038P1 HOSE Air
11 1 YB11P01041P1 HOSE Air
10 1 EB11P00001S008 LABEL
9 1 YY11P01002F1 INDICATOR
7 1 YN11P00029S006 O-RING
6 1 YE11P00005S004 VALVE Assy.
5 1 YN11P00029S004 COVER ASSY
4 1 YN11P00029S003 AIR FILTER Filter
3 1 YN11P00029S002 ELEMENT Filter
2 1 YB11P00004S001
1 1 YB11P00004F1 AIR CLEANER
AR YB11P00002F1
8 1 EB11P00001S006 ADAPTER Filter
