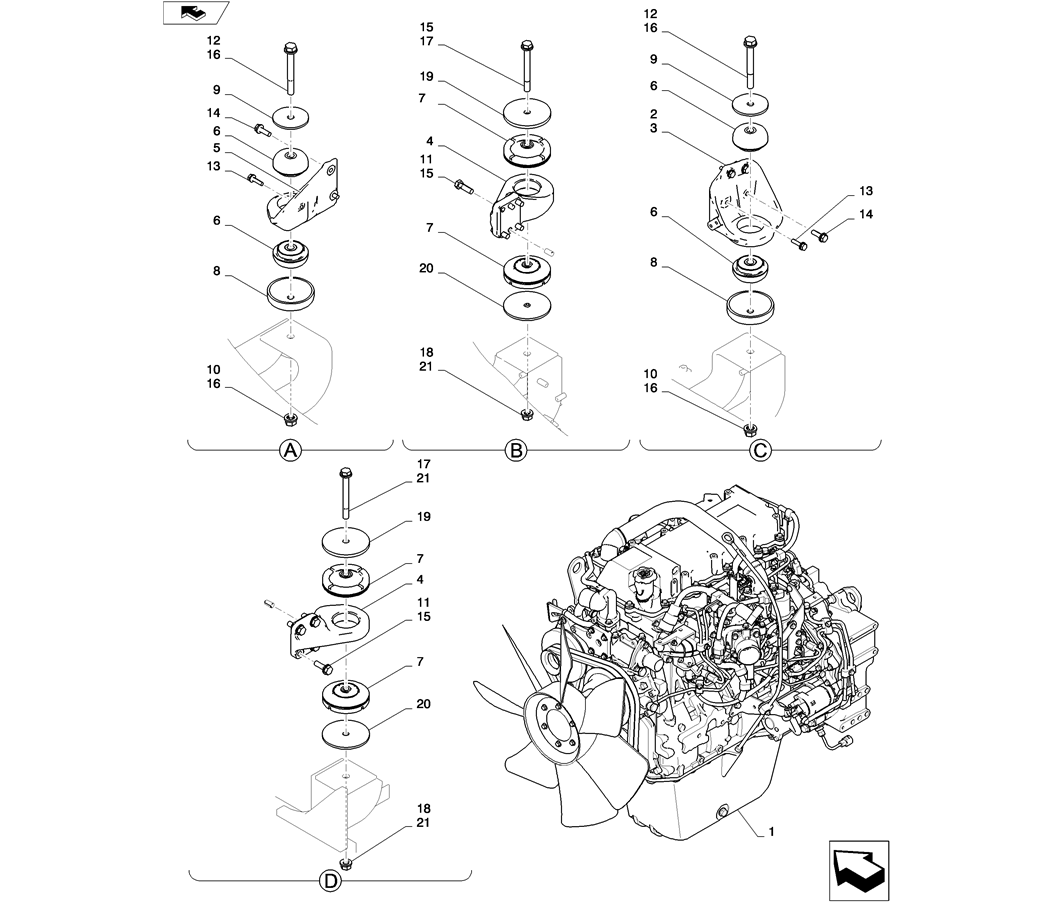

01-005(02)ENGINE INSTALL
01-005(02)ENGINE INSTALL-SK235SR-2 SK235SRLC-2 SK235SR Kobelco Excavator Parts Number Electronic Catalog EPC Manuals
21 4 ZW16H16000 WASHER
20 2 YY02P01010P1 PLATE
19 2 YY02P01009P1 PLATE
18 2 ZN18C16013 NUT
17 2 HS18C16150G2 SCREW Cap
16 4 ZW16H18000 WASHER
15 8 ZW16H14000 WASHER
14 4 ZM73C12040 BOLT Sems
13 3 ZM73C10040 BOLT Sems
12 2 ZS18C18150 CAP Screw
11 8 ZS18C14045 CAP Screw
10 2 ZN18C18015 NUT
9 2 YN02P01088P1 PLATE
7 4 YB02P01027P1 RUBBER BAND Mount
6 4 YN02P01095P1 ENGINE MOUNT Rubber
5 1 YB02P01020P1 BRACKET
4 2 YB02P01026P1 BRACKET
3 1 YB02P01019P1 BRACKET
2 1 YB02P00007F1
1 1 YF02P00005F2 , ASN YU06-03008
1 1 YF02P00005F1 , BTW YU06-03001 & YU06-03007
AR YB02P00014F1
8 2 YN02P01062P1 COVER
